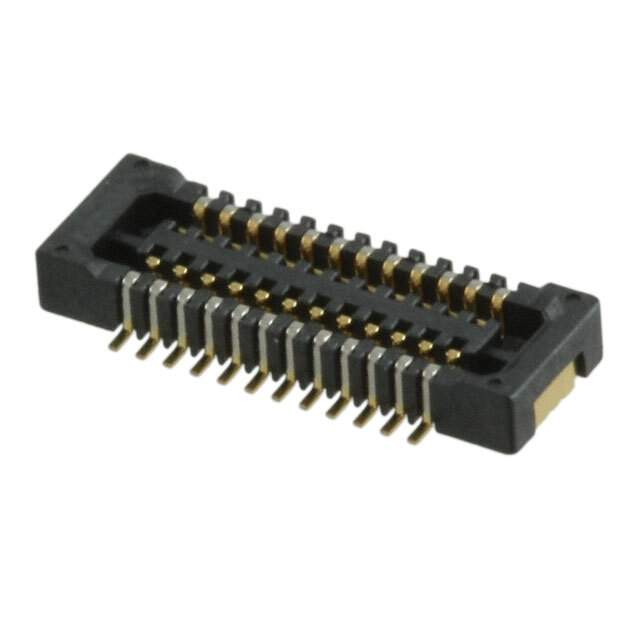

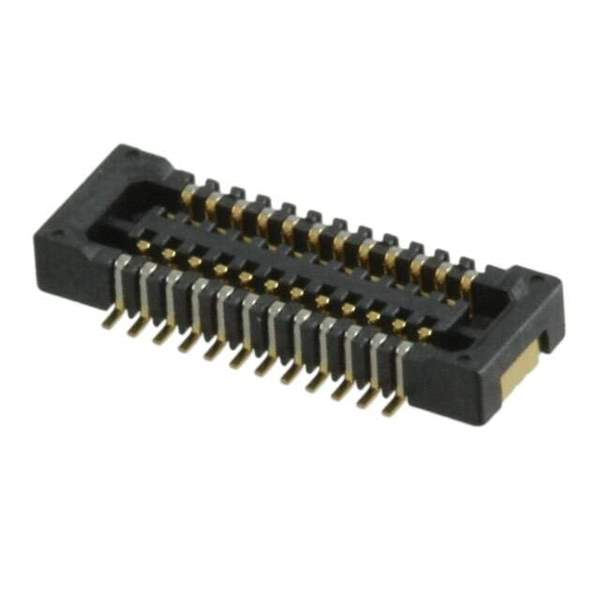

DF37B-24DS-0.4V(53) Real Image
Same model may have multiple batches, images only for reference.

DF37B-24DS-0.4V(53)

Part No DF37B-24DS-0.4V(53)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 24POS SMD GOLD / 24 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
DF37B-24DS-0.4V(53) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF37
Package Tape & Reel (TR)
Product Status Obsolete
Connector Type Receptacle, Center Strip Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.98mm
Height Above Board 0.038" (0.97mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,000
Win Source Part Number 1180276-DF37B-24DS-0.4V(53)
Ultra Librarian 3D Model Ultra Librarian DF37B-24DS-0.4V(53) CAD Model

Description

The DF37B-24DS-0.4V(53) is a rectangular connector array from Hirose Electric Co Ltd.

  • Series: DF37
  • Positions: 24
  • Pitch: 0.016 inches
  • Connector Type: Receptacle
  • Contact Type: Center strip contacts
  • Feature: Solder retention
  • Contact Finish: Gold
  • Contact Finish Thickness: 2.00 microns
  • Package: Tape and reel
  • Mated Stacking Height: 0.98mm
  • Mounting: Surface mount
  • ECCN: EAR99
