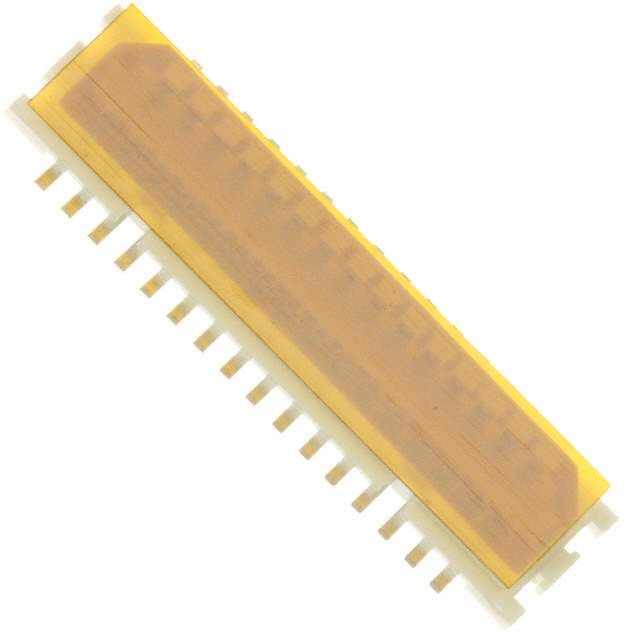

DF9A-31S-1V(22) Real Image
Same model may have multiple batches, images only for reference.

DF9A-31S-1V(22)

Part No DF9A-31S-1V(22)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN RCPT 31POS SMD TIN / 31 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Tin
Datasheet
DF9A-31S-1V(22) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF9
Package Tape & Reel
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 31
Pitch 0.039" (1.00mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide
Contact Finish Tin
Mated Stacking Heights 4.3mm
Height Above Board 0.130" (3.30mm)
Base Product Number DF9A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names *DF9A-31S-1V(22),DF9A31S1V22,H10378DKR,H10378CT,H10378TR,540-0013-2-22
Standard Package 1,000
Win Source Part Number 1042130-DF9A-31S-1V(22)
Ultra Librarian 3D Model Ultra Librarian DF9A-31S-1V(22) CAD Model

Description

The DF9A-31S-1V(22) is a rectangular connector array from Hirose Electric Co Ltd.

  • Positions: 31
  • Rows: 2
  • Type: Receptacle with Outer Shroud
  • Application: Board-to-Board Stacking
  • Pitch: 0.039 inches (1.00mm)
  • Feature: Board Guide
  • Standard Package: 1,000
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
