Same model may have multiple batches, images only for reference.

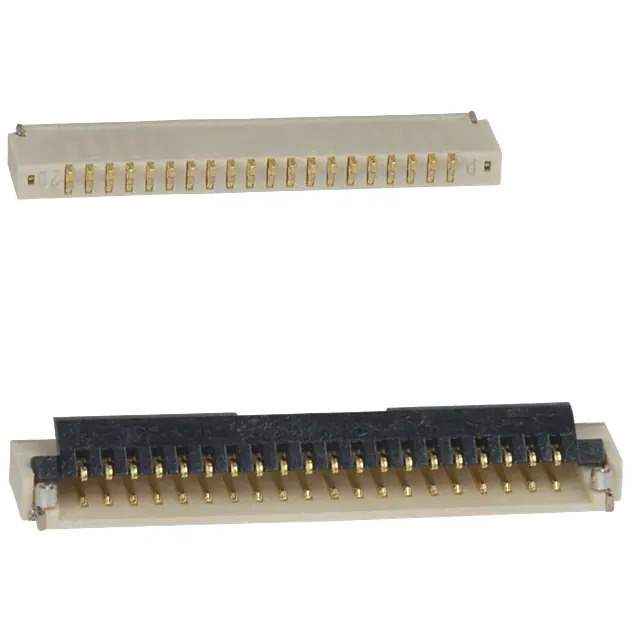

FH19SC-20S-0.5SH(99) Real Image
Same model may have multiple batches, images only for reference.

FH19SC-20S-0.5SH(99)

Part No FH19SC-20S-0.5SH(99)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 20POS 0.5MM R/A / 20 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
FH19SC-20S-0.5SH(99) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH19SC
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 20
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.037" (0.95mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Base Product Number FH19
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 871829-FH19SC-20S-0.5SH(99)
Ultra Librarian 3D Model Ultra Librarian FH19SC-20S-0.5SH(99) CAD Model

Description

The FH19SC-20S-0.5SH(99) is a FFC, FPC (Flat Flexible) Connector Assembly from Hirose Electric.

  • Series: FH19SC
  • Pitch: 0.020" (0.50mm)
  • Positions: 20
  • Features: Solder Retention, Zero Insertion Force (ZIF)
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Mounting: Surface Mount, Right Angle
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Housing Material: Beige Liquid Crystal Polymer (LCP)
  • Height Above Board: 0.037" (0.95mm)
  • Connector Type: Flat Flex FFC, FPC
  • Lock Type: Flip Lock
  • Cable End Type: Tapered
  • Operating Temperature: -55°C to 85°C
  • Standard Package: 500 pieces
