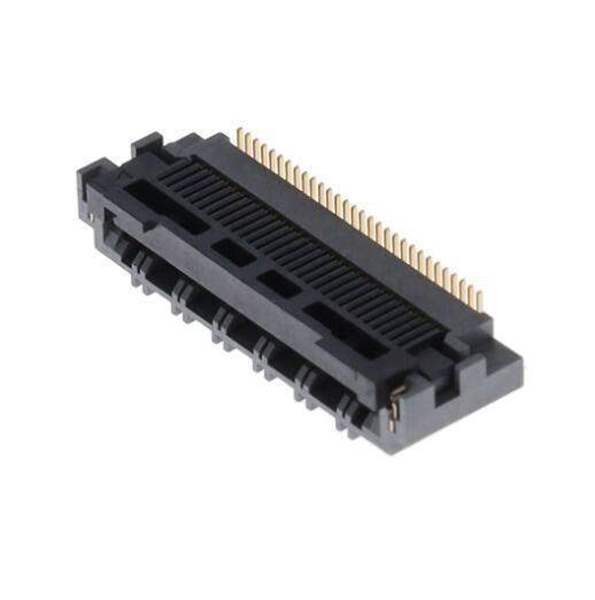

FH48-30S-0.5SVHirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FH48-30S-0.5SV

Part No FH48-30S-0.5SV
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 30POS 0.5MM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Part Status Active
Flat Flex Type FFC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 30
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.243" (6.18mm)
Win Source Part Number WS1305301-FH48-30S-0.5SV
Ultra Librarian 3D Model Ultra Librarian FH48-30S-0.5SV CAD Model

Description

30 Position FFC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
