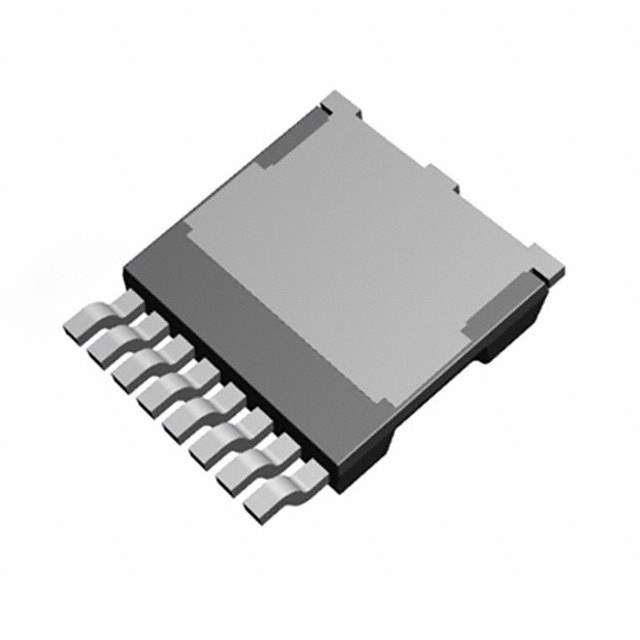

The IAUS300N08S5N012ATMA1 is a MOSFET transistor from Infineon Technologies that is designed for use in automotive applications.

• Series: OptiMOS™
• AEC-Q101 Compliant: Yes
• Channel Type: N-channel FET
• Drain to Source Voltage: 80 V
• Current Rating: 300A @ 25°C
• Rds On (Max) @ Id, Vgs: 1.2mOhm @ 100A, 10V
• Gate Charge (Qg) (Max) @ Vgs: 231 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 16250 pF @ 40 V
• Power Dissipation: 375W (Tc)
• Operating Temperature Range: -55°C to 175°C (TJ)
• Package: 8-PowerSMD, Gull Wing
• Supplied: Tape and reel
