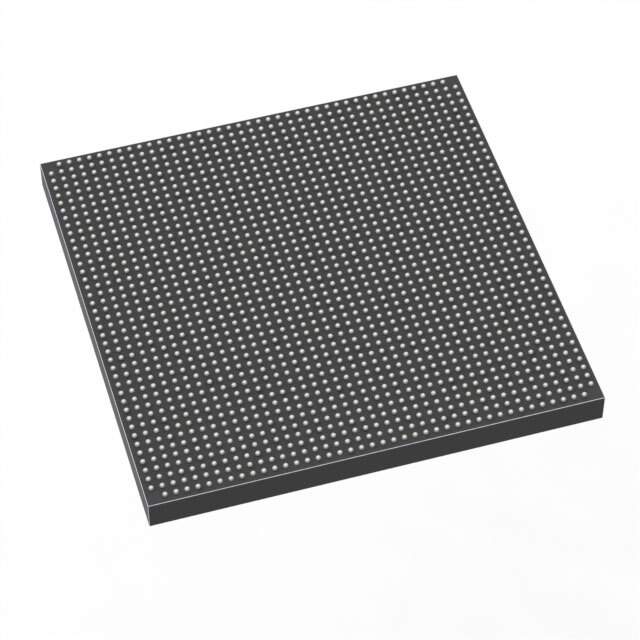

EP4SE530H35C3 Real Image
Same model may have multiple batches, images only for reference.

EP4SE530H35C3

Part No EP4SE530H35C3
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 744 I/O 1152HBGA  /  series Field Programmable Gate Array (FPGA) IC 744 28033024 531200 1152-BBGA, FCBGA
Datasheet
EP4SE530H35C3 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series STRATIX® IV E
Package Tray
Product Status Obsolete
Number of LABs/CLBs 21248
Number of Logic Elements/Cells 531200
Total RAM Bits 28033024
Number of I/O 744
Voltage - Supply 0.87V ~ 0.93V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 1152-BBGA, FCBGA
Supplier Device Package 1152-HBGA (42.5x42.5)
Base Product Number EP4SE530
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Names 971199
Standard Package 21
Win Source Part Number 1232213-EP4SE530H35C3
Ultra Librarian 3D Model Ultra Librarian EP4SE530H35C3 CAD Model

Description

The EP4SE530H35C3 is a Field Programmable Gate Array (FPGA) from Intel that belongs to the STRATIX® IV E series.

  • Logic Elements/Cells: 531200
  • LABs/CLBs: 21248
  • Voltage Supply: 0.87V to 0.93V
  • Package: 1152-BBGA, FCBGA
  • Standard Package Quantity: 21
  • Mounting Technology: Surface Mount Device (SMD)
  • I/O: 744
  • Total RAM Bits: 28033024
  • MSL Level: 3
