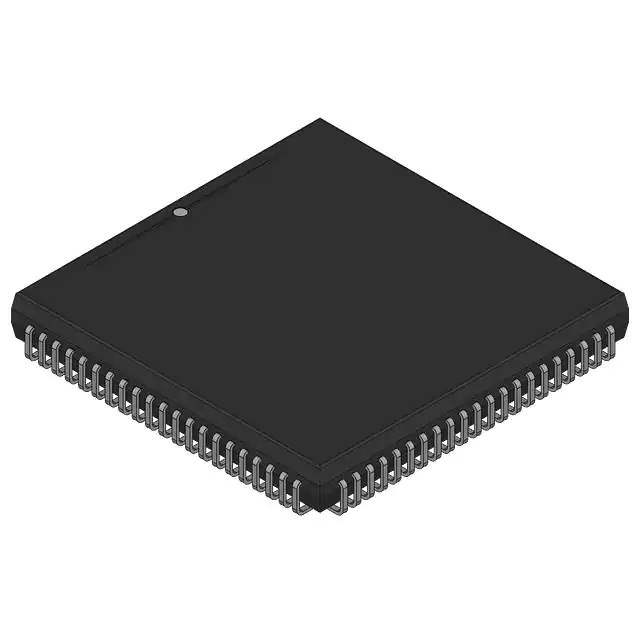

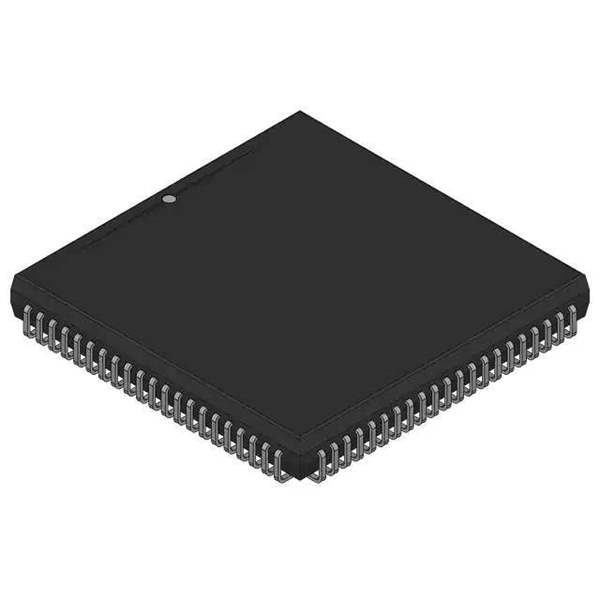

N80960SA16 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr Intel
Package Tube
Product Status Obsolete
Core Processor i960
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 16MHz
Graphics Acceleration No
Voltage - I/O 5V
Temperature Range - Operating 0°C ~ 85°C (TC)
Mounting Type Surface Mount
Package / Case 84-LCC (J-Lead)
Supplier Device Package 84-PLCC (29.31x29.31)
Standard Package 19 pcs
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 740383-N80960SA16
Ultra Librarian 3D Model Ultra Librarian N80960SA16 CAD Model

Description

The Intel 740383-N80960SA16 is an integrated circuit (IC) microprocessor designed for embedded applications. It belongs to the i960 core processor series and features a single core with a 32-bit bus width.

  • Series: i960 core processor
  • Core: Single core
  • Bus Width: 32-bit
  • Speed: 16MHz
  • I/O Voltage: 5V
  • Package: 84-LCC (J-Lead)
  • Product Status: Obsolete
  • Standard Package: 19 pieces
