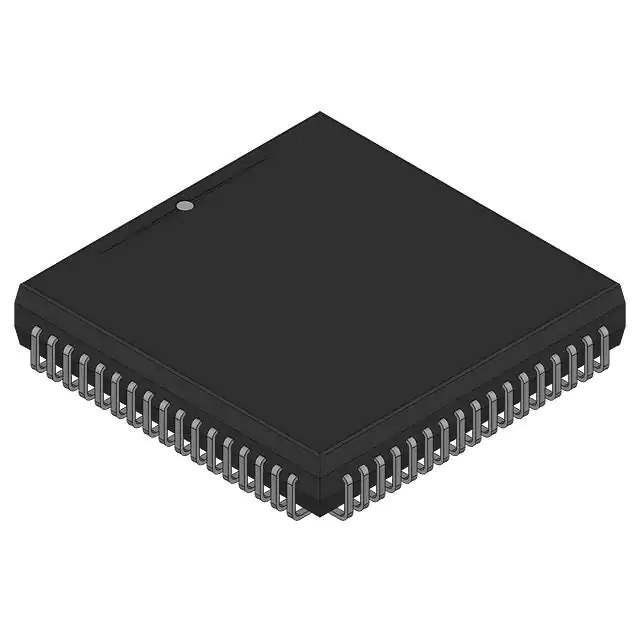

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Modems - ICs and Modules
Mfr Intel
Series 89024
Package Bulk
Product Status Active
Data Format V.21, V.22, Bell 103, Bell 212A
Baud Rates 2.4k
Voltage - Supply 4.75V ~ 5.25V
Mounting Type Surface Mount
Package / Case 68-LCC (J-Lead)
Supplier Device Package 68-PLCC
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 249496-N89026
Ultra Librarian 3D Model Ultra Librarian N89026 CAD Model

Description

The 249496-N89026 is an interface modem integrated circuit (IC) from Intel.

  • Purpose: designed for use in electronic devices that require modem communication capabilities
  • Package: Bulk
  • Standard Package: 1 piece
  • Data formats: V.21, V.22, Bell 103, and Bell 212A
  • Operating voltage: 4.75V to 5.25V
  • Mounting type: Surface Mount
  • Package: 68-LCC
  • Description: versatile modem IC that provides reliable and fast communication capabilities
