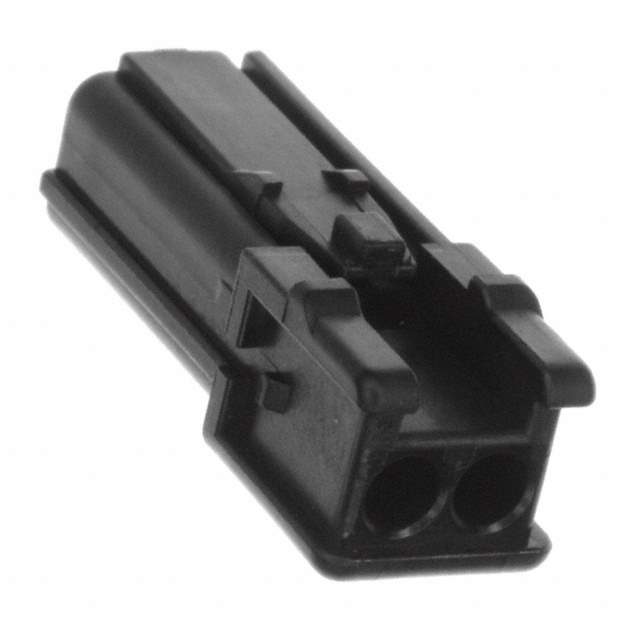

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer JAE Electronics
Packaging Tray
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 2
Pitch 0.138" (3.50mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Fastening Type Locking Ramp
Color Black
Features Waterproof
Note Contacts Not Included
Base Product Number MX440
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -MX44002SF1,670-2443
Standard Package 2,000
Win Source Part Number 1334164-MX44002SF1
Ultra Librarian 3D Model Ultra Librarian MX44002SF1 CAD Model

Description

The MX44002SF1 is a waterproof rectangular connector housing produced by JAE Electronics.

  • Waterproof: Yes
  • Positions: Two
  • Contact Type: Female sockets
  • Feature: Locking ramp
  • Color: Black
  • Applications: Automotive, industrial, and consumer electronics
  • Package: Tray
  • Pitch: 0.138" (3.50mm)
