MX47039SF1 JAE Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

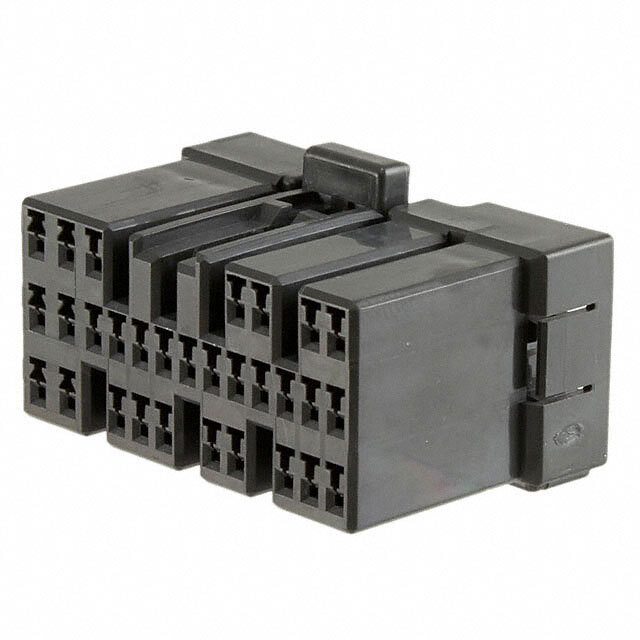

MX47039SF1

Part No MX47039SF1
Manufacturer JAE Electronics
Catalog Rectangular Connector Housings
Description CONN SOCKET HSG 39POS 2.50MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Socket
Contact Type Female Socket
Number of Positions 39
Pitch 0.098" (2.50mm)
Number of Rows 3
Row Spacing 0.142" (3.60mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Black
Features Waterproof (Mated)
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -40°C ~ 125°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1612032-MX47039SF1
Ultra Librarian 3D Model Ultra Librarian MX47039SF1 CAD Model
