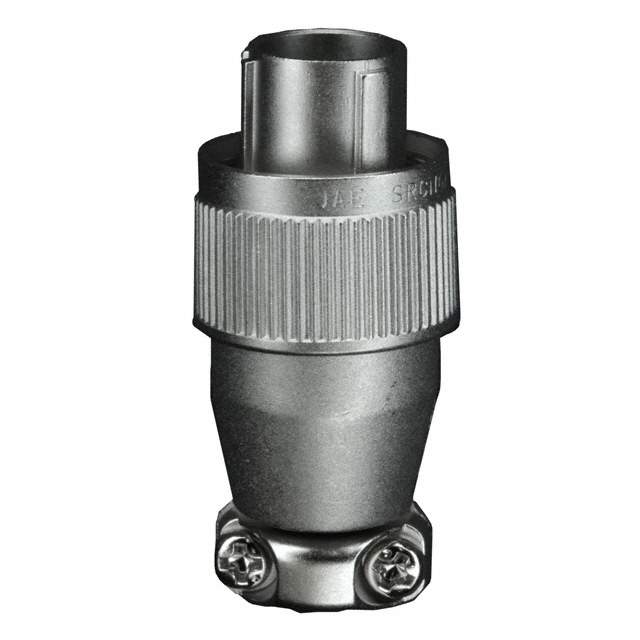

SRCN6A13-5P Real Image
Same model may have multiple batches, images only for reference.

SRCN6A13-5P

Part No SRCN6A13-5P
Manufacturer JAE Electronics
Catalog Circular Connectors
Description CONN PLUG MALE 5P SOLDER CUP  /  5 Position Circular Connector Plug, Male Pins Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr JAE Electronics
Series SRCN
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 5
Shell Size - Insert 13-5
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Features Backshell, Cable Clamp, Coupling Nut
Current Rating (Amps) 5A
Voltage Rating 250VAC, 350VDC
Cable Opening 0.335" (8.50mm)
Temperature Range - Operating -25°C ~ 85°C
Backshell Material, Plating Aluminum Alloy, Nickel
Contact Material Copper Alloy
Insert Material Plastic
Applications Communication Systems, Telecommunications, Test Equipment & Measurement
Base Product Number SRCN6A13
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names 670-1143,SRCN6A135P
Standard Package 1
Win Source Part Number 1172583-SRCN6A13-5P
Ultra Librarian 3D Model Ultra Librarian SRCN6A13-5P CAD Model

Description

The SRCN6A13-5P is a circular connector from JAE Electronics that comes in a plug type with male pins and five positions. SRCN6A13-5P is designed by JAE Electronics.

  • Connector Type: Circular
  • Type: Plug
  • Pin Type: Male
  • Positions: Five
  • Features: Backshell, Cable Clamp, Coupling Nut
  • Termination Style: Solder Cup
  • Fastening Type: Threaded
  • Voltage Rating: 250VAC / 350VDC
  • Applications: Communication Systems, Telecommunications, Test Equipment and Measurement
  • Operating Temperature: -25°C to 85°C
  • Shell Material: Aluminum Alloy
  • Shell Finish: Nickel
  • Cable Opening Diameter: 0.335" (8.50mm)
  • Current Rating: 5A
