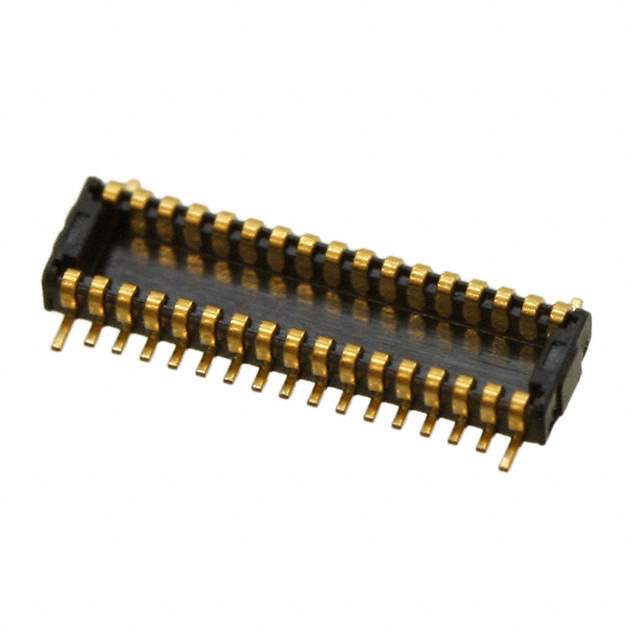

WP3-P030VA1-R6000 Real Image
Same model may have multiple batches, images only for reference.

WP3-P030VA1-R6000

Part No WP3-P030VA1-R6000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series WP3
Package Tape & Reel
Product Status Obsolete
Connector Type Plug, Outer Shroud Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 1mm
Height Above Board 0.033" (0.84mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1315776-WP3-P030VA1-R6000
Ultra Librarian 3D Model Ultra Librarian WP3-P030VA1-R6000 CAD Model

Description

The JAE Electronics WP3-P030VA1-R6000 is a 30-position connector plug with outer shroud contacts that offers surface mount gold plating.

  • Number of Positions: 30
  • Features: Outer Shroud Contacts, Surface Mount Gold Plating, Solder Retention
  • Packaging: Tape and Reel
  • Pitch: 0.016" (0.40mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00µin (0.100µm)
  • Number of Rows: 2
  • Mated Stacking Heights: 1mm
  • Height Above Board: 0.033" (0.84mm)
  • Mounting Type: Surface Mount (SMD)
  • Category: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Status: Obsolete
