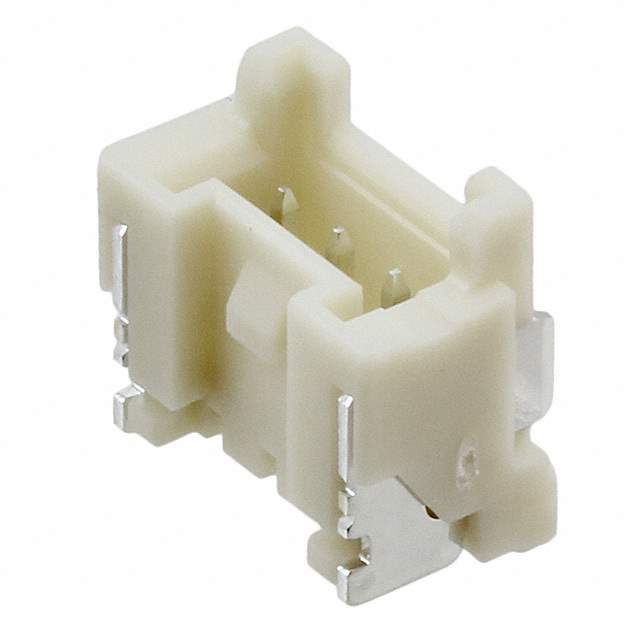

BM03B-PASS-1-TFT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM03B-PASS-1-TFT(LF)(SN)

Part No BM03B-PASS-1-TFT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PA
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.350" (8.89mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 11.1mm, 16mm, 16.2mm
Base Product Number BM03B-PA
Other Names 455-2638-6,455-2638-2,455-2638-1,BM03BPASS1TFTLFSN
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293291-BM03B-PASS-1-TFT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM03B-PASS-1-TFT(LF)(SN) CAD Model

Description

This electronic component is a connector with Win Source Part Number 1293291-BM03B-PASS-1-TFT(LF)(SN).

  • Win Source Part Number: 1293291-BM03B-PASS-1-TFT(LF)(SN)
  • Category: Connectors, Interconnects
  • Connector Type: Rectangular connector
  • Contact Type: Male pins
  • Features: Board guide, pick and place, and solder retention
  • Connector Type: Header
  • Contact Type: Male pin
  • Positions Loaded: All
  • Number of Rows: 1
  • Mounting: SMD (SMT)
  • Packaging: Tape & reel
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Standard Package: 500
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8536.69.4040
