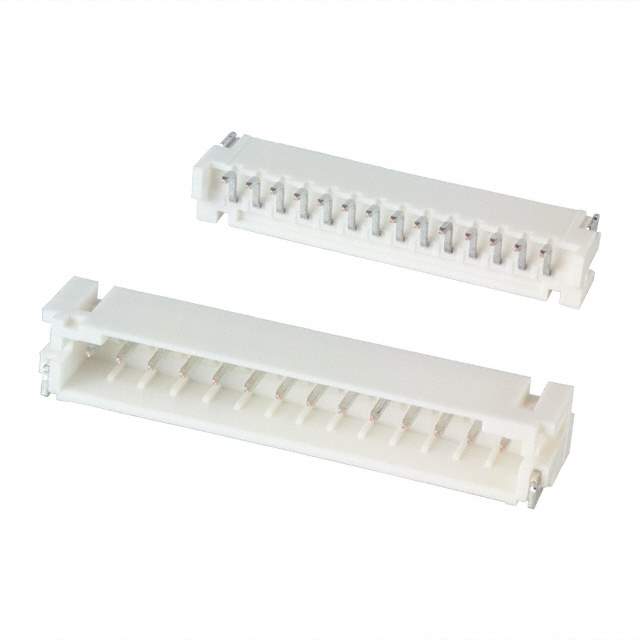

S14B-PH-SM3-TB Real Image
Same model may have multiple batches, images only for reference.

S14B-PH-SM3-TB

Part No S14B-PH-SM3-TB
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADR PH SIDE 14POS 2MM SMD
Datasheet
S14B-PH-SM3-TB Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series PH
Packaging Reel - TR
Part Status Obsolete(EOL)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 14
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA46), Nylon 4/6
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 5.5mm
RoHS State Request Verification
Win Source Part Number 741402-S14B-PH-SM3-TB
Popularity Medium
Supply and Demand Status Limited
Family Name PH
Introduction Date October 18, 2005
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian S14B-PH-SM3-TB CAD Model

Description

The JST Sales America Inc. PH series header connector is a reliable and durable electronic component.

  • Pin Count: 14 male pin contacts
  • Application: Board-to-cable/wire
  • Fastening Type: Detent lock
  • Contact Material: Brass
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Mounting Style: Surface mount, right angle
  • Insulation Material: Polyamide (PA46) and nylon 4/6
  • Material Flammability: UL94 V-0
  • Operating Temperature: -25°C to 85°C
  • Status: Obsolete (EOL)
