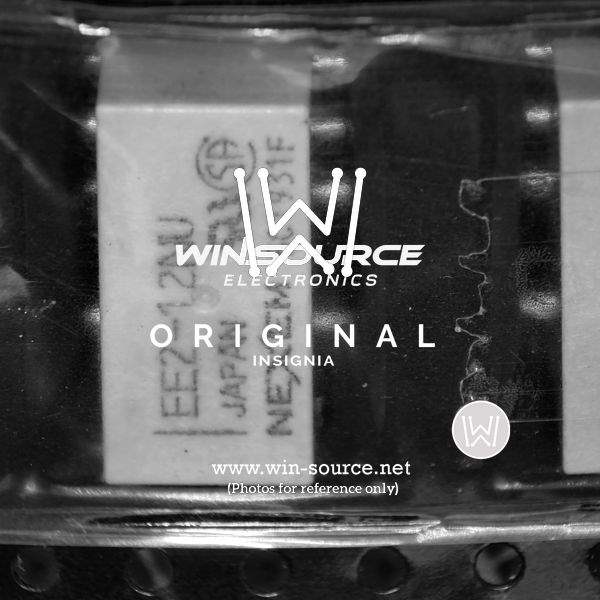

EE2-12NU Real Image EE2-12NU Real Image1 EE2-12NU Real Image2
Same model may have multiple batches, images only for reference.
EE2-12NU Real Image EE2-12NU Real Image1 EE2-12NU Real Image2
EE2-12NU Real Image EE2-12NU Real Image1 EE2-12NU Real Image2
Same model may have multiple batches, images only for reference.

EE2-12NU

Part No EE2-12NU
Manufacturer Kemet
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 12V
Datasheet
EE2-12NU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Kemet
Packaging Reel - TR
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 11.7mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 2ms
Release Time 1ms
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 140 mW
Coil Resistance 1.03 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 090236-EE2-12NU
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EE2-12NU CAD Model

Description

EE2-12NU Overview

The EE2-12NU is crafted for outstanding operational efficiency and reliability in high-stakes applications, contributing significantly to innovative technological advancements.

Features and Benefits

  • High operational efficiency
  • Robust and resilient design
  • Seamless integration capabilities

Applications

  • Aerospace Systems
  • Renewable Energy Solutions
  • Military Applications
  • Industrial Robotics

The EE2-12NU is chosen by professionals worldwide for its unmatched reliability and ease of use across various high-demand scenarios.
