Same model may have multiple batches, images only for reference.

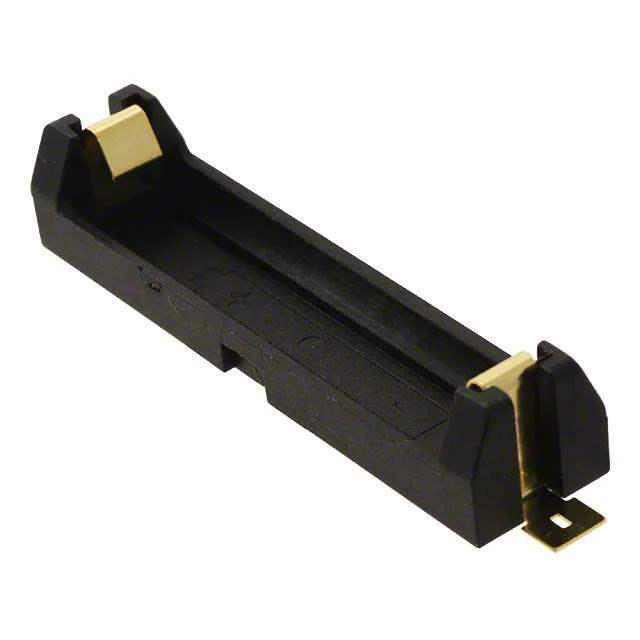

1020 Real Image
Same model may have multiple batches, images only for reference.

1020

Part No 1020
Manufacturer Keystone Electronics
Catalog Battery Holders, Clips, Contacts
Description BATT HOLDER AAA 1 CELL SMD
Datasheet
1020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Battery Products - Battery Holders, Clips, Contacts
Mfr Keystone Electronics
Package Bulk
Product Status Active
Battery Type, Function Cylindrical, Holder
Style Holder (Open)
Battery Cell Size AAA
Number of Cells 1
Mounting Type PCB, Surface Mount
Termination Style SMD (SMT) Tab
Height Above Board 0.440" (11.18mm)
Temperature Range - Operating -50°C ~ 145°C
Standard Package 200 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 538296-1020
Ultra Librarian 3D Model Ultra Librarian 1020 CAD Model

Description

The 538296-1020 is a surface mount battery holder from Keystone Electronics.

  • Battery Cell Size: AAA
  • Height Above Board: 0.440" (11.18mm)
  • Holder Style: Open
  • Number of Cells: 1
  • Temperature Range: -50°C to 145°C
  • Mounting: PCB Surface Mount
  • Standard Package: 200 pcs
  • Win Source Part Number: 538296-1020
