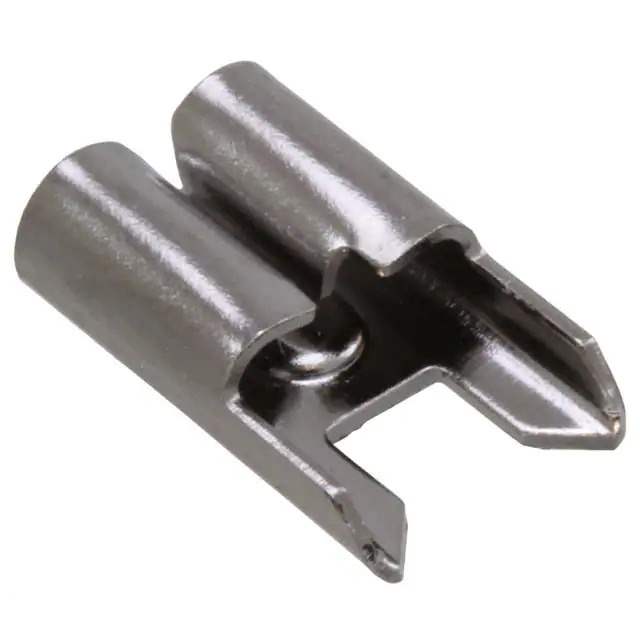

3522 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Keystone Electronics
Package Bulk
Product Status Active
Mounting Type Through Hole
Current Rating (Amps) 30 A
For Use With/Related Products ATC, ATO
Fuse Type Blade
Fuseholder Type Clip
Number of Circuits 1
Voltage 500V
Orientation Vertical
Termination Style PC Pin
Contact Material Brass
Contact Finish Tin
Approval Agency UL
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 545583-3522
Ultra Librarian 3D Model Ultra Librarian 3522 CAD Model

Description

The Fuseholder is a reliable and convenient solution for circuit protection.

  • Fuse Type: ATC and ATO
  • Voltage Rating: 500V
  • Current Rating: 30A
  • Termination Style: PC pin
  • Material: brass
  • Plating: tin
  • Standard Package: 1 piece
