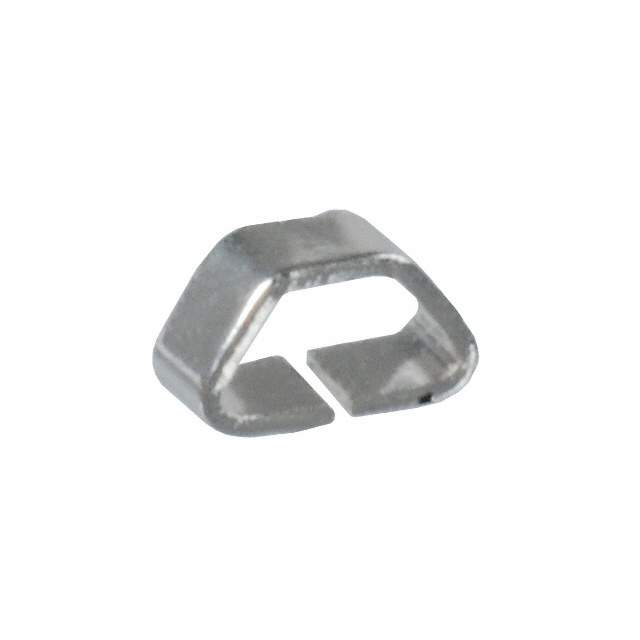

5015 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Test and Measurement - Test Points
Mfr Keystone Electronics
Package Tape & Reel
Product Status Active
Type PC Test Point, Miniature
Mounting Type Surface Mount
Size / Dimension 0.105" L x 0.040" W (2.67mm x 1.02mm)
Height 0.060" (1.52mm)
Plating Silver
Material - Insulation No Insulation
Material - Body Phosphor Bronze
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 844435-5015
Ultra Librarian 3D Model Ultra Librarian 5015 CAD Model

Description

The PC Test Point, Miniature is a compact electronic component designed for test and measurement applications.

  • Size: 0.105" L x 0.040" W (2.67mm x 1.02mm)
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Body Material: Phosphor Bronze
  • Plating: Silver
  • Height: 0.060" (1.52mm)
  • Manufacturer: Keystone Electronics
  • Product Status: Active
