Same model may have multiple batches, images only for reference.

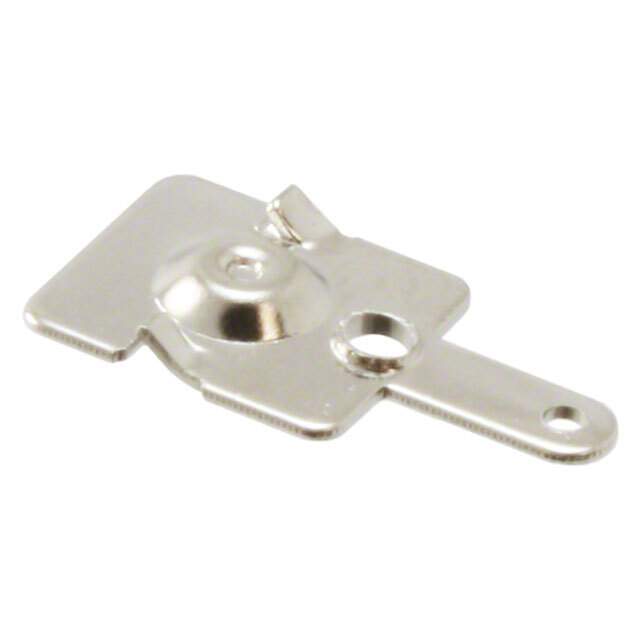

5226 Real Image
Same model may have multiple batches, images only for reference.

5226

Part No 5226
Manufacturer Keystone Electronics
Catalog Battery Accessories
Description Battery Contact, Button, With Tab, 1 Cell, AAA, AAAA, N, 12 Volt, Steel/Nickel
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Steel
Body Plating Nickel
Contact Material Steel
Contact Plating Nickel
Depth 17 mm
Height 10.3886 mm
Lead Free Lead Free
Length 9.2 mm
Material Steel
Material Thickness 508 µm
Number of Batteries 1
Number of Ports 1
Number of Terminals 1
Orientation Straight
Packaging Bulk
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
Thickness 508 µm
Width 9.1948 mm
Win Source Part Number 1136768-5226
Categories Battery Accessories
Manufacturer Keystone Electronics
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5226 CAD Model

Description

The Keystone Electronics 5226 is a straight solder terminal designed for use in battery accessories.

  • Type: Straight Solder Terminal
  • Application: Battery Accessories
  • Material: Nickel-Plated Steel
  • Packaging: Bulk
  • Lead-Free: Yes
  • RoHS Compliant: Yes
