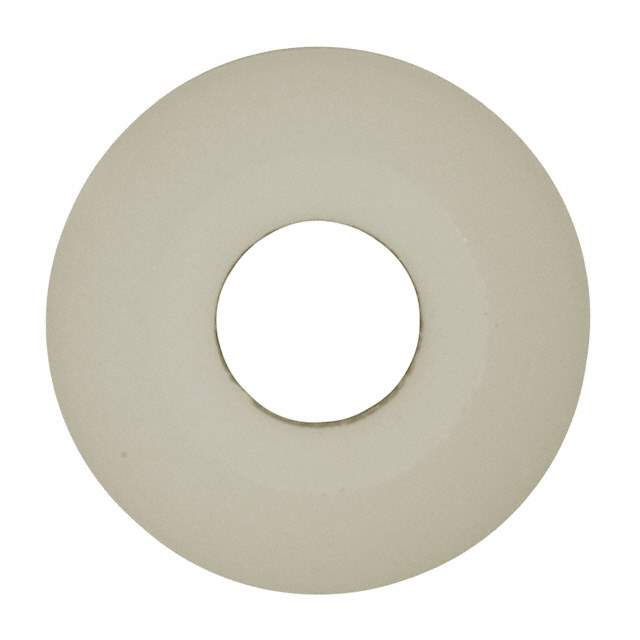

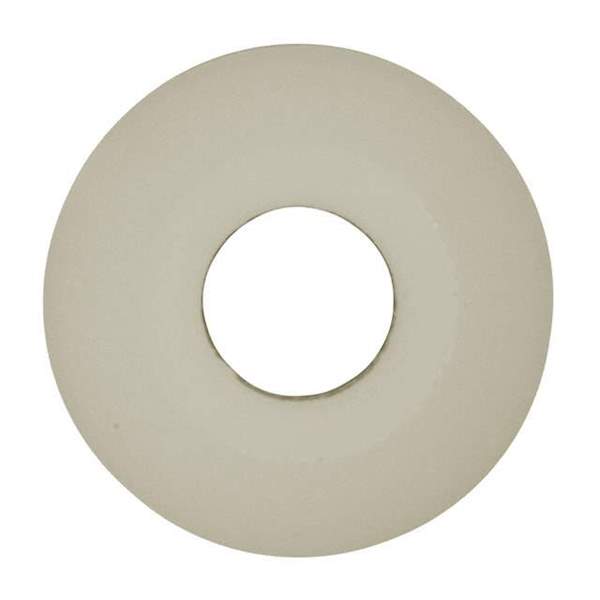

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Hardware, Fasteners, Accessories - Washers - Bushing, Shoulder
Mfr Keystone Electronics
Package Bulk
Product Status Active
Thread/Screw/Hole Size #6
Diameter - Inside 0.145" (3.68mm)
Diameter - Outside 0.385" (9.78mm)
Diameter - Shoulder 0.240" (6.10mm)
Thickness - Overall 0.094" (2.39mm) 3/32"
Length - Below Head 0.032" (0.81mm)
Material Nylon
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 3926.90.4590
Win Source Part Number 908403-7682
Ultra Librarian 3D Model Ultra Librarian 7682 CAD Model

Description

The 908403-7682 is a nylon washer bushing shoulder designed for hardware, fasteners, and accessories applications.

  • Thickness: 0.094" (2.39mm) or 3/32"
  • Outside Diameter: 0.385" (9.78mm)
  • Inside Diameter: 0.145" (3.68mm)
  • Length Below Head: 0.032" (0.81mm)
  • Thread/Screw/Hole Size: #6
  • Manufacturer: Keystone Electronics
  • Material: Nylon
  • Package: Bulk
  • Pieces per package: 100
  • Product Status: Active
