Same model may have multiple batches, images only for reference.

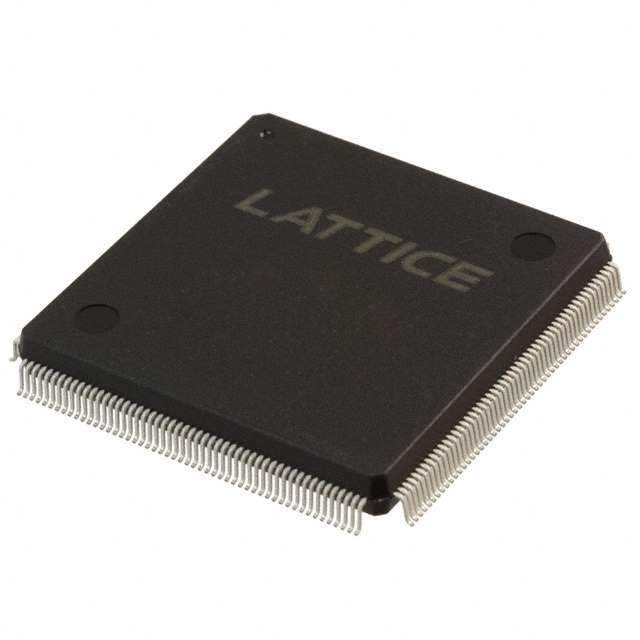

LC5512MV-75Q208C Real Image
Same model may have multiple batches, images only for reference.

LC5512MV-75Q208C

Part No LC5512MV-75Q208C
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description 3.3V, 2.5V and 1.8V In-System Programmable eXpanded Programmable Logic Device XPLD™ Family
Datasheet
LC5512MV-75Q208C Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Lattice Semiconductor Corporation
Series ispXPLD 5000MV
Packaging Tray
Part Status Obsolete(EOL)
Programmable Type In System Programmable
Delay Time tpd(1) Max 7.5ns
Voltage Supply - Internal 3 V ~ 3.6 V
Number of Logic Elements/Blocks 16
Number of Macrocells 512
Number of I/O 149
Operating Temperature Range 0°C ~ 90°C (TJ)
Mounting SMD
Package 208-BFQFP
Manufacturer Package 208-PQFP (28x28)
RoHS State Request Verification
Win Source Part Number 1195496-LC5512MV-75Q208C
Manufacturer Homepage www.latticesemi.com
Popularity Medium
Supply and Demand Status Limited
Family Name ispXPLD 5512MV
Introduction Date November 21, 2000
Country of Origin Malaysia, Philippines
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian LC5512MV-75Q208C CAD Model

Description

The Lattice Semiconductor Corporation LC5512MV-75Q208C is a part of the ispXPLD 5000MV series, which is a 512-macrocell in-system programmable (ISP) integrated circuit (IC) that is packaged in a 208-BFQFP package. It has a delay time of tpd(1) max: 7.5ns and voltage supply of 3 V ~ 3.6 V.

  • Series: ispXPLD 5000MV
  • Macrocell: 512
  • Package: 208-BFQFP
  • Delay Time (tpd(1) max): 7.5ns
  • Voltage Supply: 3 V ~ 3.6 V
  • Status: Obsolete
