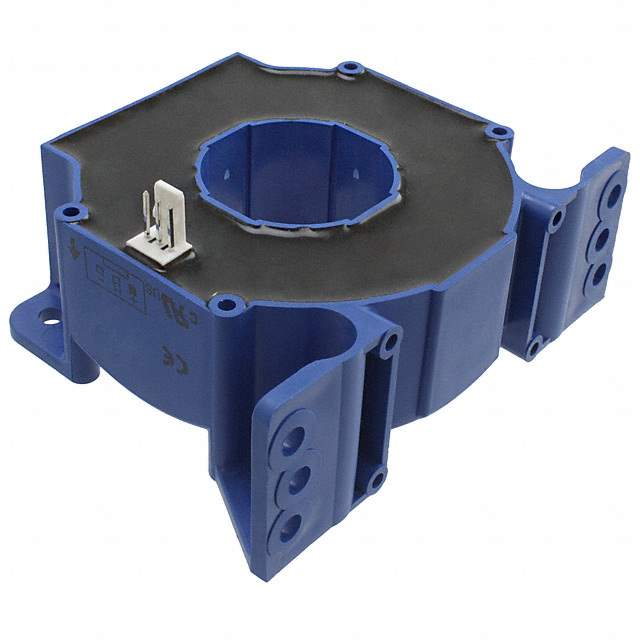

The LF 505-S is a current transducer manufactured by LEM. Current transducers are devices that convert a current signal into a proportional voltage signal, which can be easily measured and monitored. They are widely used in power electronics, industrial automation, and energy management applications for accurate current sensing.

Applications:

• Variable Speed Drives (VSD): Used in industrial motor control to measure and control motor current.
• Power Supplies: Employed in power supplies to monitor input and output currents for protection and control.
• Battery Management Systems (BMS): Used in electric vehicles and energy storage systems to measure battery charge and discharge currents.
• Welding Equipment: Found in welding machines to monitor and control welding current.
• Renewable Energy Systems: Used in solar inverters and wind turbine controllers to monitor current flow.

Features:

• Closed-Loop Hall Effect Technology: Provides high accuracy and linearity.
• Galvanic Isolation: Isolates the measurement circuit from the high-voltage power circuit for safety.
• Wide Current Measurement Range: Suitable for measuring currents from a few amps to hundreds of amps.
• Fast Response Time: Enables accurate measurement of rapidly changing currents.
• Low Temperature Drift: Ensures stable performance over a wide temperature range.

Benefits:

• Accurate Current Measurement: Provides precise current sensing for improved control and monitoring.
• Enhanced Safety: Galvanic isolation protects personnel and equipment from high voltages.
• Improved System Performance: Accurate current measurement enables optimized control and efficiency.
• Simplified Circuit Design: Easy to integrate into various circuit topologies.
• Robust Construction: Designed for long-term reliability in demanding applications.

Additional Details:

The LF 505-S typically operates from a DC power supply (e.g., ±15V). The output voltage is proportional to the measured current and is typically in the range of ±5V. Key specifications include the primary nominal current (IPN), the measurement range (IP), and the accuracy at different operating conditions. Datasheets from LEM provide detailed specifications, including linearity, offset voltage, and temperature coefficients. Proper shielding and grounding techniques are essential to minimize noise and ensure accurate measurements. The housing provides mechanical protection and electrical insulation. The transducer is designed for easy mounting and connection to external circuits.
