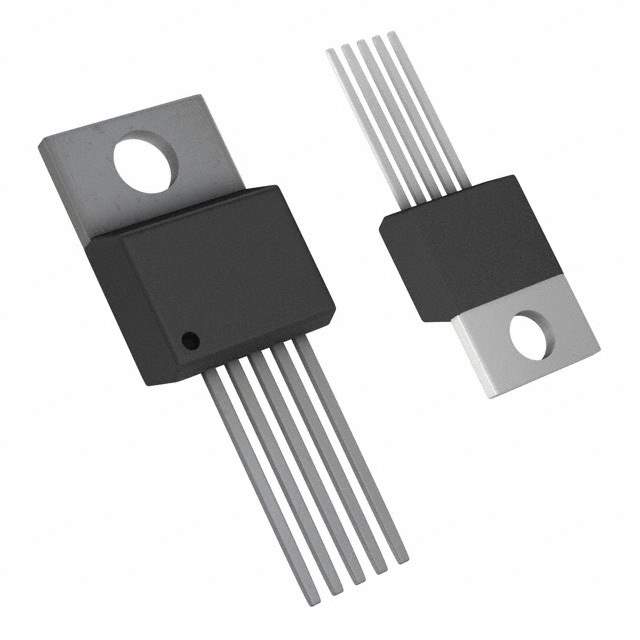

LT1076CT#06PBF

Part No LT1076CT#06PBF
Manufacturer Linear Technology
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG MULT CONFIG INV ADJ TO220 / Conv DC-DC 7.3V to 45V Synchronous Step Down Single-Out 2.5V to 50V 10A 5-Pin(5+Tab) TO-220 Tube
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Linear Technology
Packaging Tube
Function Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration Positive or Negative
Topology Buck, Boost, Flyback
Output Type Adjustable
Number of Outputs 1
Input Voltage MIN 8V
Voltage Input MAX 45V
Output Voltage 2.5V
Output Voltage MAX 35V
Output Current 2A (Switch)
Frequency - Switching 100kHz
Synchronous Rectifier No
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting Style Through Hole
Package TO-220-5
Manufacturer Package TO-220-5 Flow 6
Win Source Part Number 780183-LT1076CT#06PBF
Popularity Medium
Supply and Demand Status Limited
Family Name LT1076
Introduction Date January 09, 1996
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LT1076CT#06PBF CAD Model

Description

Linear Technology LT1076CT#06PBF Step-Down Converter

The LT1076CT#06PBF is a versatile and reliable step-down (buck) converter integrated circuit from Linear Technology, now part of Analog Devices. This component is designed to efficiently convert higher input voltages into a lower output voltage with a high degree of accuracy and stability. It is ideal for a wide range of applications, including industrial, automotive, and communication systems where efficient power management is crucial.

Key Features:

  • Versatile Input Range: The device operates over a wide input voltage range from 8V to 60V, making it suitable for various applications with different power supply requirements.
  • Adjustable Output Voltage: The output voltage is adjustable from 2.5V to 50V, providing flexibility for designers to use it in multiple configurations and with different voltage requirements.
  • High Efficiency: The LT1076CT#06PBF is designed for high efficiency, which helps reduce power loss and heat generation, improving the overall performance and reliability of the end system.
  • Thermal Protection: The device includes thermal shutdown protection that safeguards the IC from damage due to excessive heat.
  • Current Limiting: Built-in current limiting protects the device and the load from overcurrent conditions.
  • Durable Construction: Packaged in a TO-220 casing, the LT1076CT#06PBF is built to withstand harsh environments and is suitable for through-hole mounting.

Applications:

  • Automotive electronics
  • Industrial power systems
  • Portable devices
  • Telecommunications equipment
  • Battery-powered devices

The LT1076CT#06PBF's robust design ensures reliable operation even under challenging conditions, making it a preferred choice for engineers and designers seeking a dependable power management solution. With its combination of flexibility, efficiency, and protection features, this step-down converter is an excellent component for a variety of power conversion applications.
