Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Linear Technology/Analog Devices
Packaging Tube
Type with Latch
Number of Elements 1
Output Type CMOS, Complementary, Rail-to-Rail, TTL
Supply Voltage , Single/Dual (±) 2.4V ~ 12V, ±2.4V ~ 6V
Voltage - Input Offset (Maximum) 5mV at 5V
Current - Input Bias (Maximum) 5μA at 5V
Current - Output 20mA
Current - Quiescent (Maximum) 22mA
CMRR, PSRR 75dB CMRR, 85dB PSRR
Propagation Delay (Maximum) 6ns
Hysteresis 100mV
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 8-TSSOP, 8-MSOP
Mounting Style SMD
Supplier Device Package 8-MSOP
Family Part Number LT1711
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1206051-LT1711IMS8
Manufacturer Homepage www.linear.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LT1711IMS8 CAD Model

Description

The LT1711IMS8 is a state-of-the-art high-speed comparator from Linear Technology, designed to provide ultra-fast and reliable performance for a wide range of applications. This precision device is ideal for systems that require quick response times and high accuracy, such as signal processing, data communication, and control systems.

Key Features

  • Fast Propagation Delay: The LT1711IMS8 boasts an impressive propagation delay of only 4.5ns, making it one of the fastest comparators in its class. This ensures rapid signal processing and timely decision-making in critical applications.
  • Low Voltage Operation: It operates from a supply voltage range of 2.7V to 7V, allowing for flexibility in both low and standard voltage systems, and making it suitable for battery-powered and portable devices.
  • Low Power Consumption: Despite its high-speed performance, the LT1711IMS8 consumes minimal power, with a typical supply current of only 2.5mA. This feature is particularly beneficial for energy-sensitive applications.
  • Overdrive and Input Offset Voltages: The comparator is designed to handle overdrive conditions gracefully and features a low input offset voltage, which enhances the accuracy of the device.
  • Rail-to-Rail Output: The output stage of the LT1711IMS8 can swing within 10mV of both supply rails, providing maximum output dynamic range, which is especially useful in single-supply operations.
  • Robust Design: This comparator is equipped with input stages that are designed to be immune to latch-up, ensuring reliable operation even under stressful conditions.

Applications

The LT1711IMS8's high-speed characteristics and robust design make it suitable for a variety of applications, including:

  • High-Speed Differential Line Receivers
  • Zero-Crossing Detectors
  • Window Comparators
  • Pulse and Square Wave Shapers
  • High-Speed Sampling Circuits
  • Analog-to-Digital Converters (ADCs)
  • High-Speed Triggers

Package and Quality

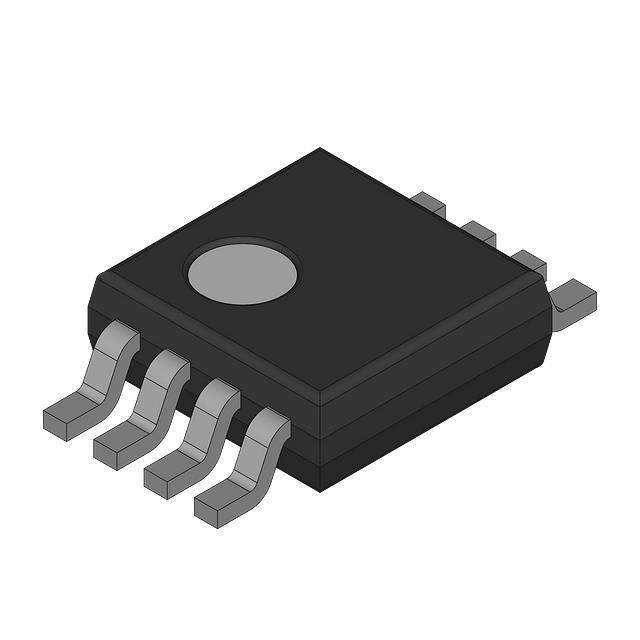

The LT1711IMS8 is available in an 8-lead MSOP package, providing a compact solution that is suitable for space-constrained applications. Linear Technology ensures high-quality and reliability, with each device rigorously tested to meet stringent industry standards.

Whether you are designing a high-speed communication system or an efficient control mechanism, the LT1711IMS8 from Linear Technology is an excellent choice for achieving fast, accurate, and reliable performance.
