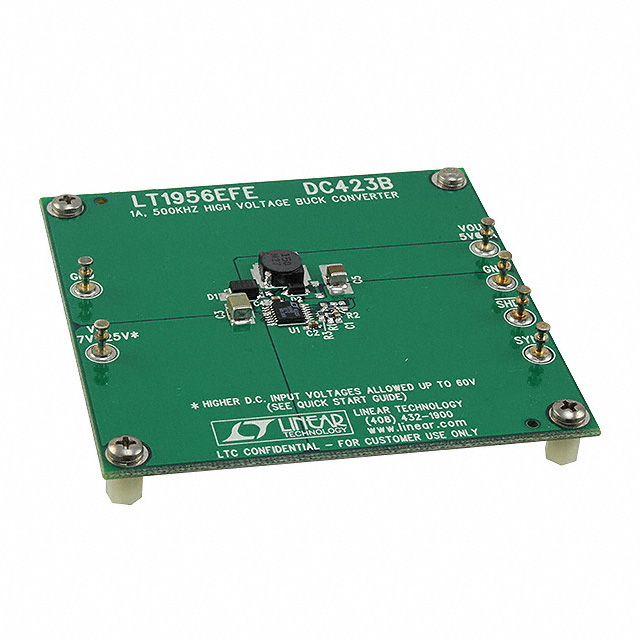

Linear Technology's LT1956EFE Step-Down Switching Regulator

The LT1956EFE is a high-performance step-down switching regulator from Linear Technology, designed to meet the needs of a wide array of voltage regulation applications. This robust component is capable of delivering up to 1.5A of continuous output current with a high efficiency that can reach up to 92%, making it an ideal choice for power-sensitive designs.

The LT1956EFE operates within a wide input voltage range of 4V to 60V, which allows it to be used in systems with high input voltage variability, such as automotive and industrial power systems. Its ability to withstand high input voltages makes it an excellent choice for applications that experience large supply transients.

One of the key features of the LT1956EFE is its adjustable switching frequency, which can be set from 100kHz to 500kHz with a single resistor. This flexibility enables designers to optimize the regulator for efficiency or component size depending on the specific requirements of their application. Additionally, the switching frequency can be synchronized to an external clock to eliminate potential interference with other circuitry.

The LT1956EFE incorporates a number of protection features to ensure reliable operation under adverse conditions. These include a foldback current limit, which reduces the output current during overcurrent conditions, and a thermal shutdown mechanism that protects the device from overheating. Its robust thermal performance is further enhanced by the EFE package, which includes a thermal pad for efficient heat dissipation.

Other notable features of the LT1956EFE include its low dropout operation, which allows it to maintain regulation with minimal difference between the input and output voltages. The device also offers a user-selectable Burst Mode® operation, which reduces quiescent current and improves efficiency at light loads. This makes the LT1956EFE suitable for battery-powered applications where extending battery life is crucial.

In summary, the LT1956EFE from Linear Technology is a versatile and efficient step-down switching regulator that is well-suited for a broad range of applications. Its wide input voltage range, adjustable switching frequency, and comprehensive protection features make it a reliable and flexible solution for your power regulation needs.
