Products specifications

Categories Integrated Circuits (ICs)
Manufacturer Linear Technology
Packaging Tube
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage Input MAX 23V
Output Voltage 0V
Output Voltage MAX 23V
Voltage Dropout (Maximum) 0.42V @ 3A
Output Current 3A
Operating Supply Current 50.5μA ~ 1mA
PSRR 85dB ~ 20dB (120Hz ~ 1MHz)
Protection Features Over Current, Over Temperature, Short Circuit
Operating Temperature Range -40°C ~ 125°C
Mounting SMD

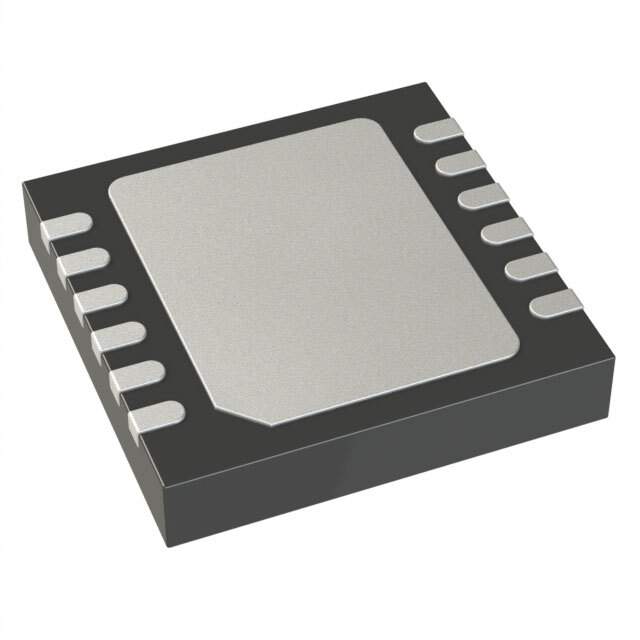

Package 12-WFDFN Exposed Pad
Manufacturer Package 12-DFN (4x4)
Win Source Part Number 780980-LT3083EDF#PBF
Popularity Medium
Supply and Demand Status Limited
Family Name LT3083
Introduction Date January 27, 2011
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LT3083EDF#PBF CAD Model

Description

Product Overview: LT3083EDF#PBF

The LT3083EDF#PBF is a versatile low dropout linear regulator (LDO) from Linear Technology, designed to offer precision, flexibility, and reliability for a wide range of applications. This adjustable 3A LDO features a unique architecture that allows for easy current sharing, making it ideal for modular power supplies that require scalability in current output.

Key Features

  • Adjustable Output: The output voltage can be set anywhere from 0V to V<sub>IN - 1.1V, with a single resistor, providing a high level of flexibility to match the needs of various circuits.
  • Wide Input Voltage Range: The LT3083EDF#PBF operates with an input voltage range from 1.8V to 36V, making it suitable for a diverse set of applications, from low-voltage to high-voltage systems.
  • Extended Safe Operating Area: The regulator is designed with an internal protection circuit that expands its safe operating area (SOA), ensuring reliable operation under a broader range of conditions.
  • Thermal Regulation: The device incorporates an internal ballast function that spreads the heat across more than one LT3083 regulator, which is critical for applications requiring high current output.
  • Stable with Ceramic Capacitors: It is stable with low-ESR ceramic capacitors, which reduces the need for additional external components and allows for a more compact design.
  • Low Dropout Voltage: The LT3083EDF#PBF maintains a low dropout voltage, which ensures efficient operation even when the input-to-output voltage differential is small.

Applications

The LT3083EDF#PBF is an excellent choice for a variety of applications, including:

  • Power supplies for sensitive analog and digital integrated circuits
  • Post-regulation for switching power supplies
  • Industrial equipment
  • Battery-powered devices
  • Microprocessor supply

Package and Quality

The LT3083EDF#PBF comes in a 12-lead DFN package, which offers a compact footprint while still providing excellent thermal performance. It is RoHS compliant and adheres to Linear Technology's stringent quality standards, ensuring high reliability and performance for critical applications.
