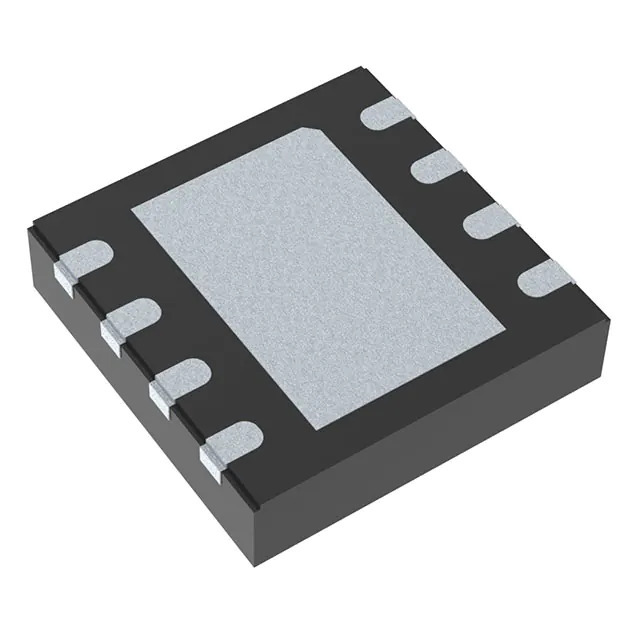

Microchip Technology's MCP1722-3312H/Q8B: A High-Performance LDO Voltage Regulator

Microchip Technology's MCP1722-3312H/Q8B is a highly efficient, low dropout voltage regulator (LDO) that offers excellent performance for a wide range of applications. This compact LDO is designed to deliver a fixed output voltage of 3.3V with an input voltage range from 2.7V to 6.0V, making it ideal for battery-powered devices and other low-voltage electronics.

The MCP1722-3312H/Q8B stands out with its low quiescent current of 120 µA (typical), which helps to prolong battery life in portable applications. Moreover, it can supply up to 250 mA of output current, ensuring adequate power for small to medium-sized loads. The LDO's low dropout voltage of 525 mV (typical) at 250 mA allows it to maintain regulation even when the supply voltage is very close to the output voltage, which is particularly useful when operating on battery power that diminishes over time.

Featuring a standard SOT-223 package, this voltage regulator incorporates short-circuit protection and thermal shutdown features to enhance system reliability and safety. Additionally, the MCP1722-3312H/Q8B provides excellent line and load regulation, ensuring a stable output voltage despite variations in input voltage or load current.

One of the key advantages of the MCP1722-3312H/Q8B is its low output voltage temperature coefficient, which results in a stable output over the entire operating temperature range of -40°C to +125°C. This makes the device suitable for use in harsh environmental conditions.

Applications for the MCP1722-3312H/Q8B are diverse and include portable electronics, wireless communication devices, microcontroller power supplies, and other digital devices that require a stable and efficient power supply. Its robust feature set ensures that this LDO can meet the stringent requirements of modern electronic systems, while its small footprint allows for integration into space-constrained designs.

In summary, the MCP1722-3312H/Q8B from Microchip Technology is a versatile and reliable LDO voltage regulator that offers a perfect balance of efficiency, performance, and protection for a wide array of electronic applications.
