Products specifications

Categories Integrated Circuits (ICs)
Manufacturer Linear Technology
Packaging Tube
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage Input MAX 23V
Output Voltage 0V
Output Voltage MAX 23V
Voltage Dropout (Maximum) 0.51V @ 3A
Output Current 3A
Operating Supply Current 50.5μA ~ 1mA
PSRR 85dB ~ 20dB (120Hz ~ 1MHz)
Protection Features Over Current, Over Temperature, Short Circuit
Operating Temperature Range -40°C ~ 125°C
Mounting Style Through Hole
Package TO-220-5 Formed Leads
Manufacturer Package TO-220-5
Win Source Part Number 780982-LT3083ET#PBF
Popularity Medium
Supply and Demand Status Limited
Family Name LT3083
Introduction Date January 27, 2011
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LT3083ET#PBF CAD Model

Description

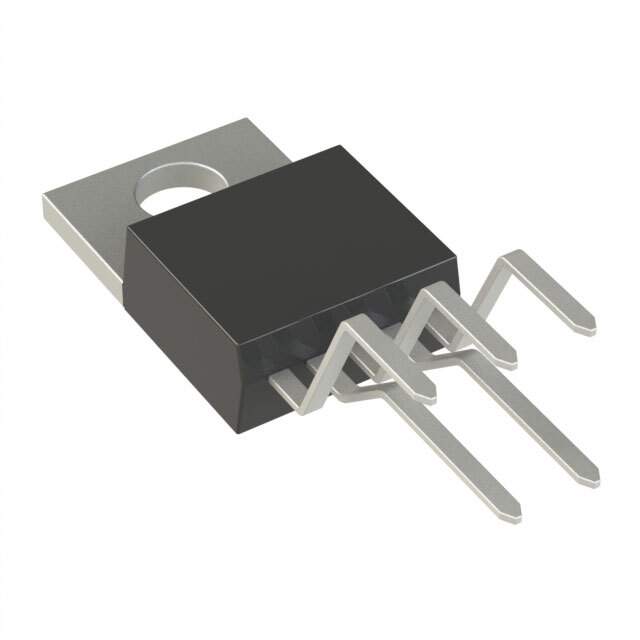

Product Overview: LT3083ET#PBF

The LT3083ET#PBF is a versatile low dropout linear regulator (LDO) from Linear Technology, designed to accommodate a wide range of power supply applications. This adjustable 3A LDO features a unique architecture that enables it to offer both high performance and flexibility, making it an ideal choice for precision power regulation tasks.

The LT3083ET#PBF stands out with its extended safe operating area (SOA), which is made possible by its robust design and thermal characteristics. Its adjustable output voltage ranges from 0V to V<sub>IN - 0.6V, where V<sub>IN can be up to 20V, providing great versatility for different voltage requirements. To set the output voltage, only a single resistor is needed, simplifying the design and minimizing the external component count.

This regulator features a wide input voltage range, allowing it to be used in various applications, from simple low-voltage consumer electronics to more complex industrial systems. Its low dropout voltage ensures efficient operation even when the input-to-output voltage differential is small, which is particularly beneficial in battery-powered devices where maximizing run time is crucial.

The LT3083ET#PBF also boasts excellent thermal performance thanks to its power package, which is designed to handle high power dissipation with ease. This means that even at full load, the device can maintain a stable temperature, ensuring reliable performance over its entire operating range.

Moreover, the device includes several protective features that safeguard it and the load from adverse conditions. These include current limiting, thermal shutdown, and reverse-battery protection. Such features make it a resilient choice for systems where reliability is paramount.

In summary, the LT3083ET#PBF is a highly adaptable and reliable LDO regulator that provides precise voltage control, efficient operation, and robust protection features. Its ease of use and performance characteristics make it an excellent choice for designers seeking a high-quality power management solution.

Key Features:

  • Adjustable output from 0V to V<sub>IN - 0.6V
  • 3A output current
  • Wide input voltage range up to 20V
  • Low dropout voltage
  • Single resistor output voltage setting
  • Thermal shutdown and current limit protection
  • Reverse-battery protection
  • Stable with low-ESR ceramic capacitors
