Linear Technology's LT3090MPMSE: A High-Performance Negative Linear Regulator

The LT3090MPMSE is a state-of-the-art negative linear regulator designed by Linear Technology, a name synonymous with precision and reliability in the world of electronic components. This robust product offers a wide array of features suitable for a diverse range of applications, from sensitive instrumentation to industrial systems.

At the heart of the LT3090MPMSE is its ability to deliver up to 500mA of continuous output current with a typical dropout voltage of only 300mV. This impressive performance is achieved while maintaining a low noise output, which is critical for sensitive analog circuits. The output noise can be further reduced to an ultra-low 10µVRMS with the addition of an optional external capacitor, making it an ideal choice for high-end audio applications and precision data acquisition systems.

The LT3090MPMSE operates with a wide input voltage range from -1.2V to -36V, which provides designers with the flexibility to use it in various configurations and environments. Moreover, the regulator is equipped with a programmable output voltage set by a single resistor, offering a versatile output range from -0.8V to -32V. This feature simplifies the design process and allows for easy adjustments to meet specific application requirements.

Protection features are paramount in any power management component, and the LT3090MPMSE excels in this area. It includes overcurrent and overtemperature protection, ensuring the regulator and your application remain safe under extreme conditions. The thermal shutdown feature activates to prevent damage from excessive heat, while the current limiting function protects the device from unexpected output overload conditions.

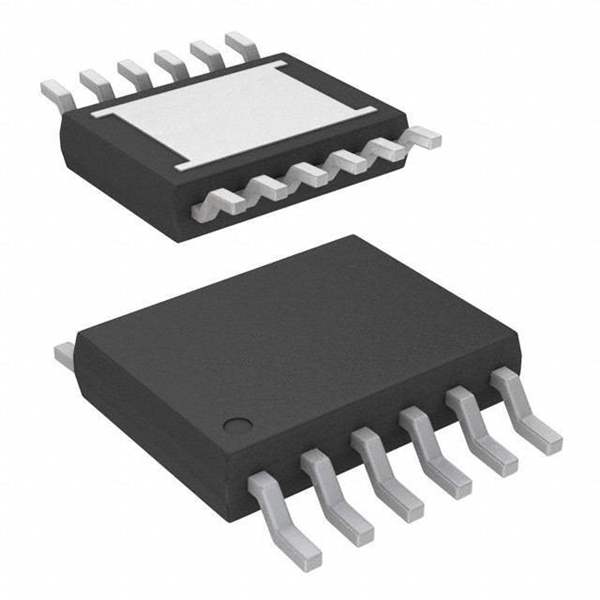

Linear Technology has packaged the LT3090MPMSE in a compact MSOP-12 package, which is both space-efficient and conducive to excellent thermal performance. This makes it an ideal solution for space-constrained applications that require a high-quality power supply solution.

In summary, the LT3090MPMSE from Linear Technology is a versatile, high-performance negative linear regulator that offers a combination of low noise, high output current, and a wide input voltage range, along with robust protection features. Its ease of use and compact form factor make it an excellent choice for designers looking to enhance the performance and reliability of their power management systems.
