Overview of LT3483ES6 - A High Voltage, Micropower DC/DC Converter

The LT3483ES6 is a versatile and compact DC/DC converter from Linear Technology, designed to meet the needs of a wide range of applications that require high voltage outputs with low power consumption. This product is part of the LT3483 series, which is known for its efficiency and reliability in converting lower voltage inputs to higher voltage outputs.

Key Features

• Integrated Power Switch: The LT3483ES6 comes with an internal 2A, 36V switch, allowing for a simplified design that reduces the need for external components.
• Wide Input Voltage Range: It operates from an input voltage range of 2.5V to 16V, making it suitable for applications that are powered by anything from a single lithium-ion cell to multiple alkaline/NiMH cells, or even automotive inputs.
• Adjustable Output Voltage: The output voltage can be set anywhere from the input voltage up to 34V, providing flexibility for various design requirements.
• Low Quiescent Current: With a quiescent current of only 25uA, the LT3483ES6 is optimized for battery-powered and energy-sensitive applications.

Applications

The LT3483ES6 is ideal for portable applications due to its small footprint and low power consumption. It is commonly used in OLED displays, CCD applications, and as a bias supply for photodiodes and PIN diodes. Its ability to provide a high voltage output makes it suitable for powering sensors, microcontrollers, and other electronic components that require a stable voltage supply.

Package and Reliability

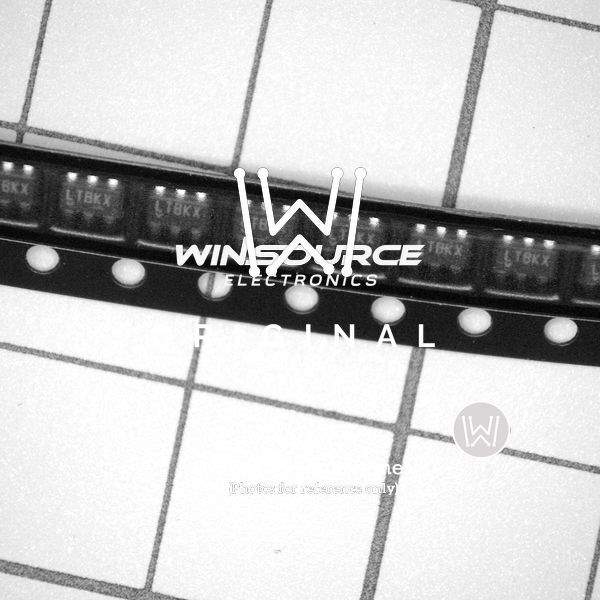

Encased in a compact SOT-23 package, the LT3483ES6 is designed for space-constrained applications. Its thermal performance is enhanced by a thermal shutdown feature, which protects the device under over-temperature conditions. The product's robust design ensures reliable operation over its specified temperature range, making it a trusted choice for engineers and designers.

In summary, the LT3483ES6 from Linear Technology is a high-performance, micropower DC/DC converter that combines efficiency, versatility, and reliability, making it an excellent choice for a variety of high voltage applications.
