Linear Technology's LT5527EUF High Linearity Mixer

The LT5527EUF by Linear Technology is a high-performance, double-balanced mixer designed to cater to the demanding needs of RF and IF applications. This product is engineered to provide exceptional linearity and noise performance, making it an ideal choice for wireless infrastructure, broadband, and other high-frequency communication systems.

Key Features

• Frequency Range: The LT5527EUF operates over a wide frequency range, supporting RF frequencies from 400MHz to 3.7GHz and LO frequencies from 400MHz to 3.8GHz, which provides flexibility for various design requirements.
• Conversion Gain: It offers a conversion gain of typically 2dB, which helps to maintain signal integrity through the mixing process.
• High Linearity: The device boasts an Input IP3 (third-order intercept point) of 24.1dBm at 900MHz, ensuring high linearity and low distortion for complex signal environments.
• Low Noise Figure: With a low noise figure of 10.2dB at 900MHz, the LT5527EUF minimizes additional noise, preserving the quality of the received signal.
• Integrated LO Buffer: The integrated LO buffer amplifier simplifies the design and reduces external component requirements, while also providing a high level of performance.

Applications

• Wireless Infrastructure (e.g., base stations for cellular networks)
• Broadband Wireless Services
• High-Frequency Point-to-Point Radios
• Test Equipment
• RFID and Satellite Communications

Product Specifications

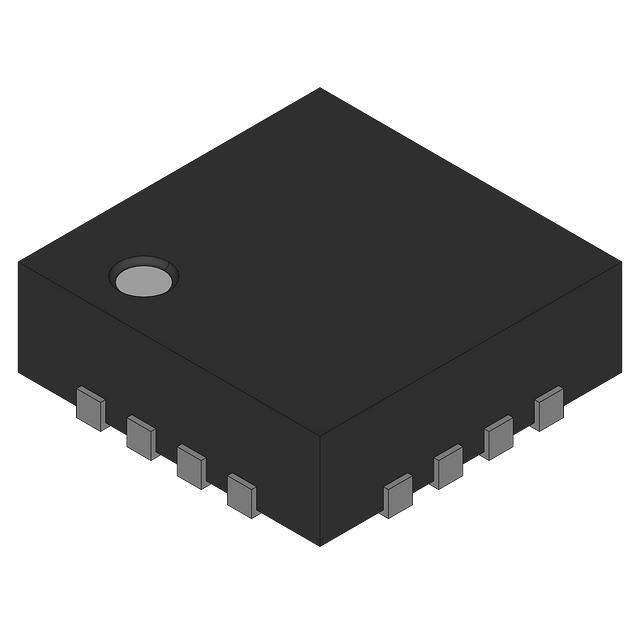

The LT5527EUF is housed in a compact 16-lead QFN package, measuring just 4mm x 4mm, which allows for a space-saving design in densely packed circuit boards. The device operates over a temperature range of -40°C to 85°C, ensuring reliability across various environmental conditions. Additionally, it requires a single supply voltage from 3.1V to 5.25V, providing designers with flexibility in power supply management.

With its high linearity and low noise characteristics, the LT5527EUF from Linear Technology stands out as a premium choice for designers looking to optimize the performance of their RF and IF signal chains in advanced communication systems.
