Products specifications

Categories Integrated Circuits
Manufacturer Linear Technology/Analog Devices
Packaging Tube
Status Obsolete
Resolution 16
Number of D/A Converters 1
Settling Time 2μs
Output Type Current - Unbuffered
Differential Output Yes
Data Interface SPI
Reference Type External
Supply Voltage , Analog 5V
Supply Voltage , Digital 5V
INL/DNL (LSB) ±2 (Maximum), ±1 (Maximum)
Architecture Multiplying DAC
Temperature Range - Operating 0°C ~ 70°C

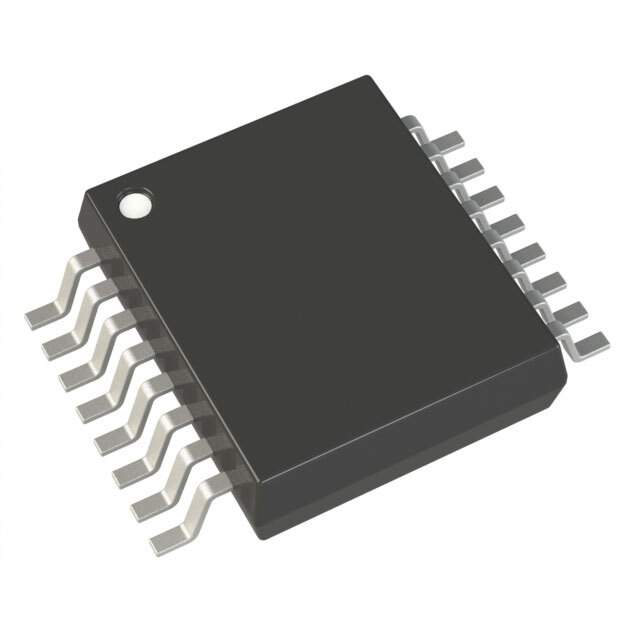

Manufacturer Package 16-SSOP
Supplier Device Package 16-SSOP
Mounting Style SMD
Family Part Number LTC1592
Manufacturer Pack Quantity 77
MSL Level 1 (Unlimited)
Win Source Part Number 1207759-LTC1592BCG
Manufacturer Homepage www.linearsystems.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LTC1592BCG CAD Model

Description

The LTC1592BCG is a precision 16-bit digital-to-analog converter (DAC) designed by Linear Technology, offering high performance with a SoftSpan I/O feature that allows for versatile output configurations. This DAC is ideal for industrial control systems, automated test equipment, and high-end audio applications where accuracy and flexibility are paramount.

Key Features:

  • 16-Bit Resolution: The LTC1592BCG provides a high degree of precision with its 16-bit resolution, ensuring accurate analog output for demanding applications.
  • SoftSpan I/O: With the innovative SoftSpan feature, users can select from six predefined output ranges (±10V, ±5V, 0-10V, 0-5V, -2.5V to 7.5V, and -10V to 10V) without the need for external components, offering great flexibility in various use cases.
  • Parallel Interface: The parallel data interface allows for fast and straightforward communication with microprocessors or digital systems, making it easy to integrate into existing designs.
  • Low Glitch Impulse: The DAC exhibits a low glitch impulse, which minimizes the transient errors during output voltage changes, crucial for high-performance applications.
  • Settling Time: The device features a fast settling time, enabling quick and accurate updates to the output voltage.
  • Packaging: Housed in a 28-pin SSOP package, the LTC1592BCG is compact and suitable for space-constrained applications.

Applications:

  • Industrial Automation and Control Systems
  • Precision Data Acquisition Systems
  • Automated Test Equipment
  • High-End Audio Equipment

The LTC1592BCG is a testament to Linear Technology's commitment to high-quality, reliable components. Its combination of precision, flexibility, and ease of use makes it an excellent choice for engineers and designers looking to enhance their systems with a top-tier DAC solution.
