Products specifications

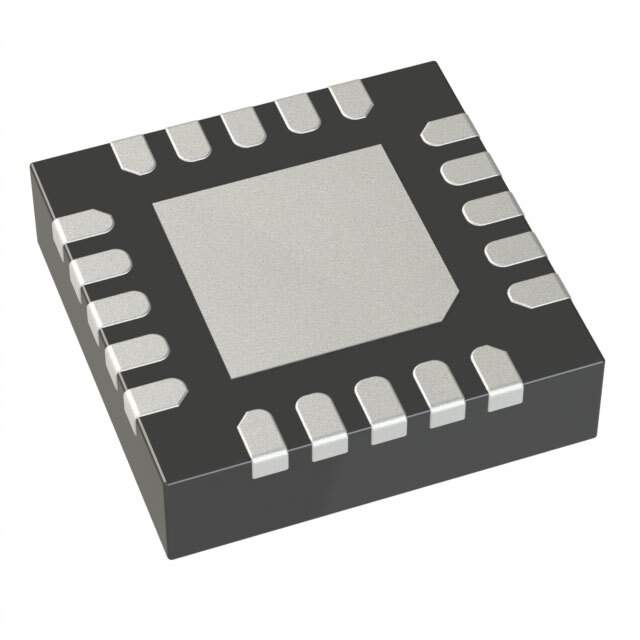

Categories Integrated Circuits
Manufacturer Linear Technology/Analog Devices
Packaging Tube
Status Obsolete
Applications Handheld/Mobile Devices
Supply Current 10μA
Supply Voltage (V) 2.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 20-WFQFN Exposed Pad
Supplier Device Package 20-QFN (3x3)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 732181-LTC3554EUD-2
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LTC3554EUD-2 CAD Model

Description

The LTC3554EUD-2 is a versatile and robust integrated power management IC from Linear Technology, designed to cater to the demanding needs of portable applications. This compact solution combines a high-efficiency, synchronous step-down DC/DC converter with an additional three LDO (Low Dropout) regulators, making it an ideal choice for space-constrained applications.

Key Features:

  • High Efficiency: The primary DC/DC converter operates at up to 95% efficiency, ensuring minimal power loss and extended battery life for portable devices.
  • Multiple Output Channels: The LTC3554EUD-2 features one buck converter and three LDO regulators, providing multiple voltage rails from a single input source.
  • Adjustable Output Voltages: The output voltages are adjustable, allowing for a high degree of flexibility to meet various application requirements.
  • Low Quiescent Current: It offers low quiescent current, which is critical for battery-powered devices, reducing the overall power consumption when in standby mode.
  • Programmable Soft-Start: The soft-start function limits inrush current during startup, which is particularly useful for preventing glitches in sensitive electronics.
  • Overcurrent Protection: Built-in overcurrent protection safeguards the device and the load from unexpected conditions.

Applications:

The LTC3554EUD-2 is ideal for a wide range of portable applications, including:

  • Smartphones and PDAs
  • Portable media players
  • Digital cameras
  • Handheld instruments
  • GPS devices

Technical Specifications:

Parameter Value Input Voltage Range 2.5V to 5.5V DC/DC Converter Output Voltage Range 0.8V to VIN LDO Output Voltage Range 0.8V to 3.3V Switching Frequency 2.25MHz Package 16-Lead QFN (4mm × 4mm)

Overall, the LTC3554EUD-2 from Linear Technology is a comprehensive power management solution that combines efficiency, flexibility, and protection, making it a prime choice for designers looking to optimize the performance and battery life of their portable devices.
