The LTC3780EG is a versatile and high-performance DC/DC controller from Linear Technology, designed to manage power supplies in a wide range of electronic applications. It is a synchronous buck-boost converter that operates with four switches, allowing it to maintain output voltage regulation with input voltages that are either above, below, or equal to the output voltage. This makes the LTC3780EG an ideal choice for applications that require a constant voltage despite varying power supply conditions.

This robust controller operates over a wide input voltage range of 4V to 38V, and it can produce an output voltage ranging from 0.8V up to 38V, which covers a broad spectrum of applications from automotive systems to portable devices. The LTC3780EG is capable of delivering high efficiency due to its synchronous operation, which reduces power losses by eliminating the need for a diode in the power path.

The LTC3780EG features a powerful 1.1Ω on-chip gate drivers, designed to drive large MOSFETs, which enables the handling of high current applications with ease. The constant-frequency current mode architecture of the LTC3780EG allows for excellent line and load regulation and ensures stable operation with a wide range of output capacitors and inductors.

Protection features of the LTC3780EG include overvoltage, undervoltage, and overcurrent protection, ensuring the safety and reliability of the power supply under various conditions. The controller also provides a foldback current limit, which helps to reduce the current in short-circuit conditions, further enhancing the safety of the system.

For applications that demand precision and reliability, the LTC3780EG offers programmable soft-start, tracking capability, and power good signaling, which contribute to a controlled and predictable startup sequence and system monitoring.

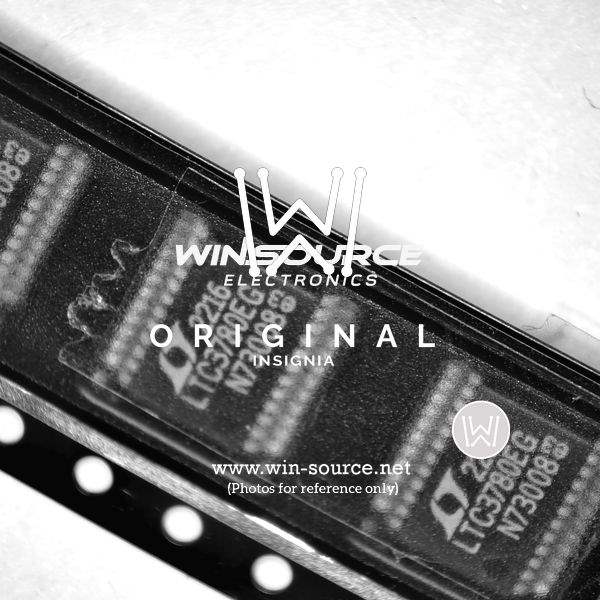

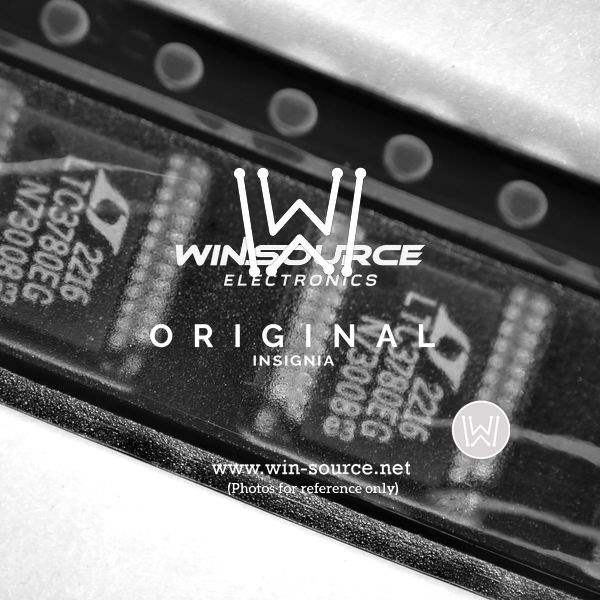

The LTC3780EG is available in a thermally enhanced 24-lead TSSOP package, making it suitable for compact designs where space is at a premium. Its robustness, flexibility, and high performance make the LTC3780EG a go-to solution for engineers looking to design efficient, stable, and reliable power supply systems.
