Overview of LTM8022EV#PBF

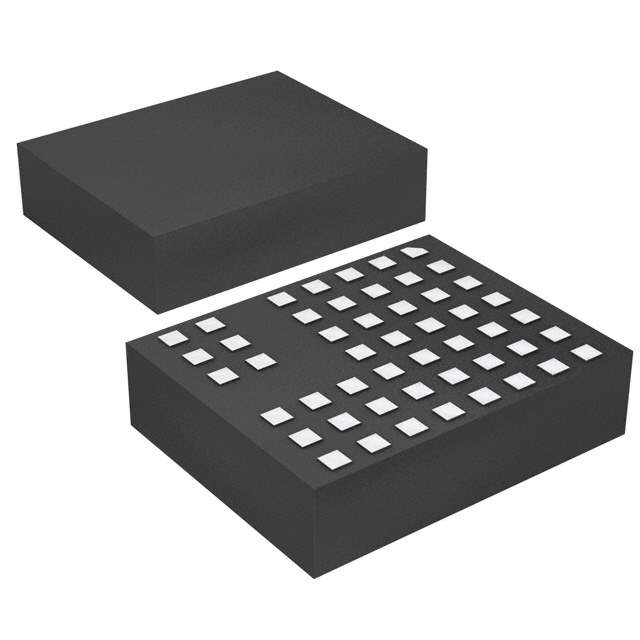

The LTM8022EV#PBF is a highly efficient, micro-module step-down power converter from Linear Technology, designed to simplify the process of power supply design. This product integrates the inductor, power switches, DC/DC controller, and all the necessary support components into a compact, surface-mountable package. The LTM8022EV#PBF is a versatile power solution that can be used in a wide range of applications, from industrial to telecommunications and portable devices.

Key Features

• Integrated Solution: The LTM8022EV#PBF combines several components into one package, reducing the design complexity and footprint on the circuit board.
• Wide Input Voltage Range: It operates from an input voltage range of 3.6V to 36V, making it suitable for a variety of input sources, including standard 5V, 12V, and 24V rails.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.8V to 10V, which allows designers to use it for different voltage requirements without changing the physical hardware.
• High Efficiency: Its high-efficiency design ensures minimal heat generation and energy loss, which is crucial for thermal management in compact systems.
• Output Current: It can deliver up to 2A of continuous output current, suitable for a range of moderate power applications.
• Protection Features: The module includes over-temperature protection and current limiting to safeguard the device and the load in adverse conditions.

Applications

The versatility of the LTM8022EV#PBF makes it an excellent choice for various applications, including but not limited to:

• Distributed Power Systems
• Industrial Controls
• Telecommunication Infrastructure
• Battery-Powered Equipment
• Point-of-Load Power Supplies

Quality and Reliability

Linear Technology is known for its commitment to quality, and the LTM8022EV#PBF is no exception. It is designed to meet high standards of reliability and performance, ensuring a dependable power supply solution for your critical applications.

With its ease of use, integrated design, and flexible operating parameters, the LTM8022EV#PBF is an ideal choice for designers looking for a compact, efficient, and reliable power management solution.
