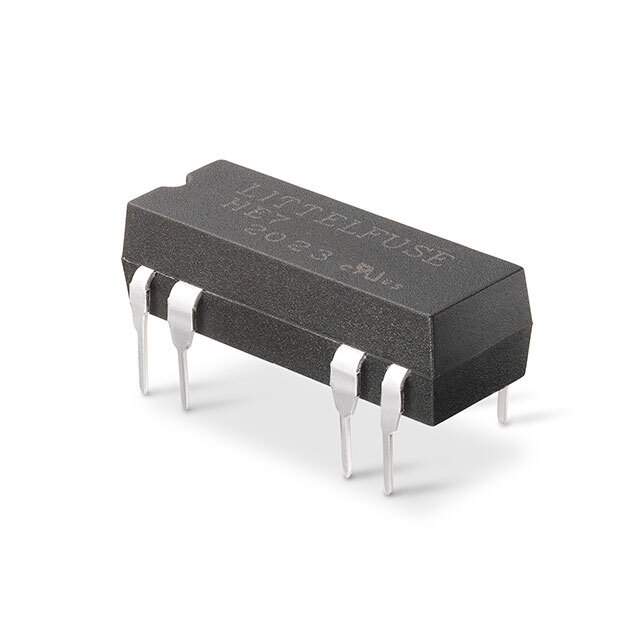

HE722A0500 Real Image1 HE722A0500 Real Image2
Same model may have multiple batches, images only for reference.
HE722A0500 Real Image1 HE722A0500 Real Image2
HE722A0500 Real Image1 HE722A0500 Real Image2
Same model may have multiple batches, images only for reference.

HE722A0500

Part No HE722A0500
Manufacturer Littelfuse Inc.
Catalog Signal Relays, Up to 2 Amps
Description RELAY REED DPST 500MA 5V /
Datasheet
HE722A0500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Reed Relays
Mfr Littelfuse Inc.
Series HE700
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VDC - Max
Coil Current 25 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 1 ms
Release Time 1 ms
Temperature Range - Operating -40°C ~ 85°C
Coil Resistance 200 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Other Names Q3269754,HE554,HE722A0500-ND,HE722A0500-NDL,-1024-HE722A0500,Q2088272BZ
Standard Package 500
Win Source Part Number 1230039-HE722A0500
Ultra Librarian 3D Model Ultra Librarian HE722A0500 CAD Model

Description

The HE700 series DPST-NO (2 Form A) reed relay from Littelfuse Inc. is a reliable and high-performance component for use in electronic circuits.

  • Coil Voltage: 5VDC
  • Coil Resistance: 200 Ohms
  • Coil Current: 25 mA
  • Contact Rating (Current): 500 mA
  • Maximum Switching Voltage: 200VDC
  • Operate Time: 1 ms
  • Release Time: 1 ms
  • Mounting Style: Through-Hole
  • Operating Temperature: -40°C to 85°C
