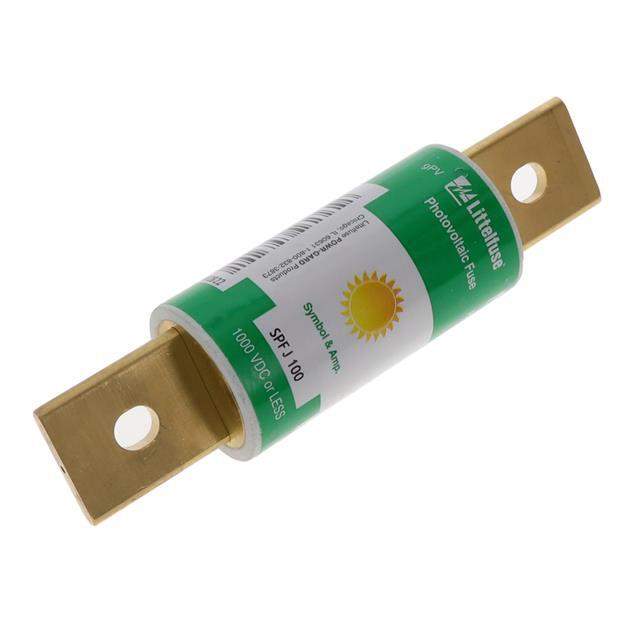

SPFJ100.X Real Image
Same model may have multiple batches, images only for reference.

SPFJ100.X

Part No SPFJ100.X
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Datasheet
SPFJ100.X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® SPFJ
Mounting Type Bolt Mount
Fuse Type Cartridge
Current Rating (Amps) 100A
Voltage Rating - DC 1 kV
Response Time Fast Blow
Applications Solar (Photovoltaic)
Class J
Approval Agency CE, UL
Breaking Capacity @ Rated Voltage 20kA
Package / Case Cylindrical, Blade Terminal (Bolt)
Dimension 1.500" Dia x 3.012" L (38.10mm x 76.50mm)
DC Cold Resistance 1.243 mOhms
Other Names -SPFJ100.X,SPFJ 100
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1302322-SPFJ100.X
Ultra Librarian 3D Model Ultra Librarian SPFJ100.X CAD Model

Description

The Littelfuse Inc. SPFJ100.X POWR-GARD® fuse is a fast-blow cartridge type component that is designed for use in solar (photovoltaic) applications.

  • Voltage Rating: 1 kV
  • Breaking Capacity: 20kA
  • Application: Protecting electrical circuits from overcurrent and short-circuit conditions
  • Current Rating: 100A
  • DC Cold Resistance: 1.243 mOhms
  • Response Time: 400ms
  • Mounting: Bolt mount
  • Package/Case: Cylindrical, blade terminal (bolt)
  • Approval Agency: CE and UL approved
  • ECCN: EAR99
