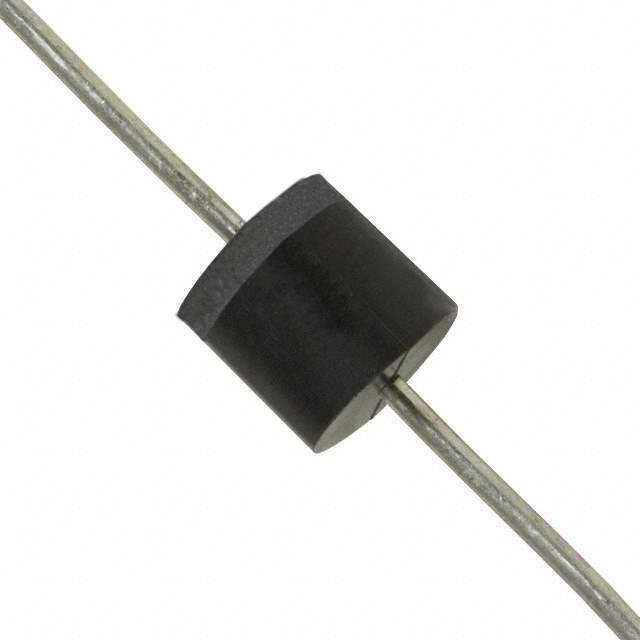

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, TP5KP
Package Tape & Reel (TR),Cut Tape (CT)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26.7V
Voltage - Clamping (Max) @ Ipp 38.9V
Current - Peak Pulse (10/1000µs) 131.1A
Power - Peak Pulse 5000W (5kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names F7619CT,F7619TR,-TP5KP24A
Standard Package 800
Win Source Part Number 1100716-TP5KP24A
Ultra Librarian 3D Model Ultra Librarian TP5KP24A CAD Model

Description

The Littelfuse Inc. TP5KP24A is a high-performance TVS diode that is designed to protect your electronic devices from voltage spikes and surges.

  • Mounting: Through-hole
  • Package/Case: P600 axial
