Same model may have multiple batches, images only for reference.

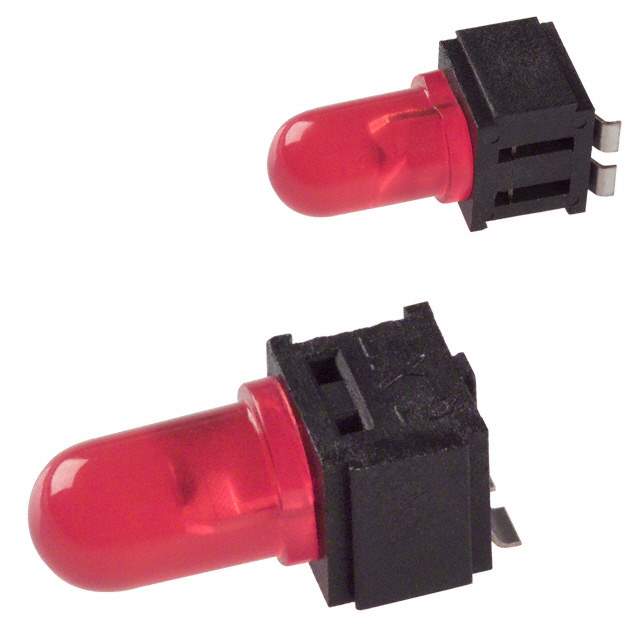

SMF-HM1530ID-509 Real Image
Same model may have multiple batches, images only for reference.

SMF-HM1530ID-509

Part No SMF-HM1530ID-509
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM RA 635NM RED DIFF SMD / LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 2V 20mA Surface Mount, Right Angle
Datasheet
SMF-HM1530ID-509 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Wavelength - Peak 635nm
Configuration Single
Current 20mA
Millicandela Rating 30mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Voltage Rating 2V
Mounting Type Surface Mount, Right Angle
Base Product Number SMF-HM1530
Other Names SMFHM1530ID509,67-1645R,67-1645
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238173-SMF-HM1530ID-509
Ultra Librarian 3D Model Ultra Librarian SMF-HM1530ID-509 CAD Model

Description

The SMF-HM1530ID-509 is a red LED circuit board indicator from Lumex Opto/Components Inc.

  • Manufacturer: Lumex Opto/Components Inc.
  • Voltage Rating: 2V
  • Viewing Angle: 60 degrees
  • Millicandela Rating: 30mcd
  • Wavelength Peak: 635nm
  • Lens Type: Diffused and tinted
  • Mounting: Surface or at a right angle
  • Packaging: Bulk
  • Standard Package: 100
