The MAX17222EVKIT# from Maxim Integrated is a comprehensive evaluation kit designed for testing the performance and capabilities of the MAX17222 nanoPower boost converter. This evaluation kit enables designers and engineers to explore the features of the MAX17222, which is well-suited for battery-powered and energy-harvesting applications due to its ultra-low quiescent current and high efficiency across a wide range of load conditions.

Key Features

• High Efficiency: The MAX17222 boost converter operates with a high efficiency that can go up to 95%, ensuring minimal energy loss during voltage conversion.
• Ultra-Low Quiescent Current: With a quiescent current as low as 300nA, the MAX17222 is optimized for extending battery life in portable devices.
• Wide Input Voltage Range: The device supports an input voltage range from 0.4V to 5.5V, making it versatile for various low-voltage applications.
• Adjustable Output Voltage: Users can set the output voltage from 1.8V to 5V using external resistors, providing flexibility for different circuit requirements.
• True Shutdown™ Mode: The MAX17222 features a True Shutdown mode that disconnects the output from the input with no forward or reverse current to minimize power consumption when not in use.

Applications

The MAX17222EVKIT# is ideal for a range of applications, including:

• Energy Harvesting
• Internet of Things (IoT) Devices
• Wireless Sensor Networks
• Battery-Powered Devices
• Portable Medical Equipment

Kit Contents and Ease of Use

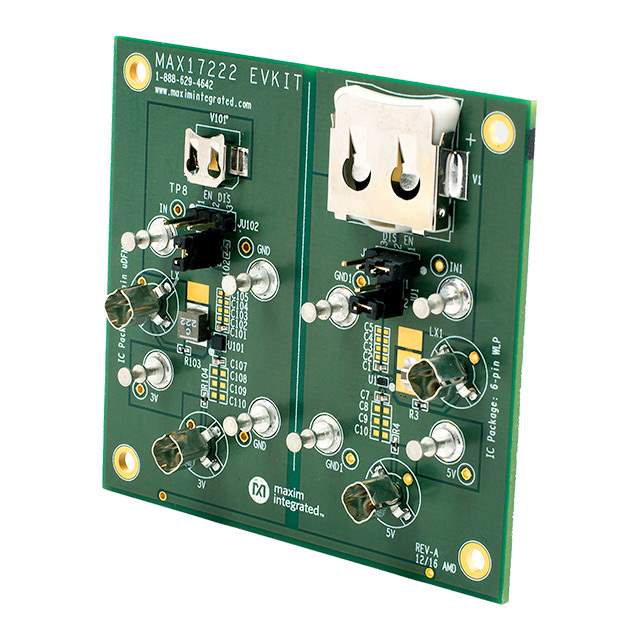

The evaluation kit includes the MAX17222 evaluation board and a comprehensive user guide that provides detailed instructions for setup and operation. The board is fully assembled and tested, allowing for quick and easy evaluation straight out of the box. It features convenient test points and jumper options for easy measurement and configuration of the boost converter's parameters.

For engineers looking to implement a power-efficient boost solution in their designs, the MAX17222EVKIT# from Maxim Integrated serves as an essential tool to accelerate development and ensure optimal performance of the MAX17222 nanoPower boost converter.
