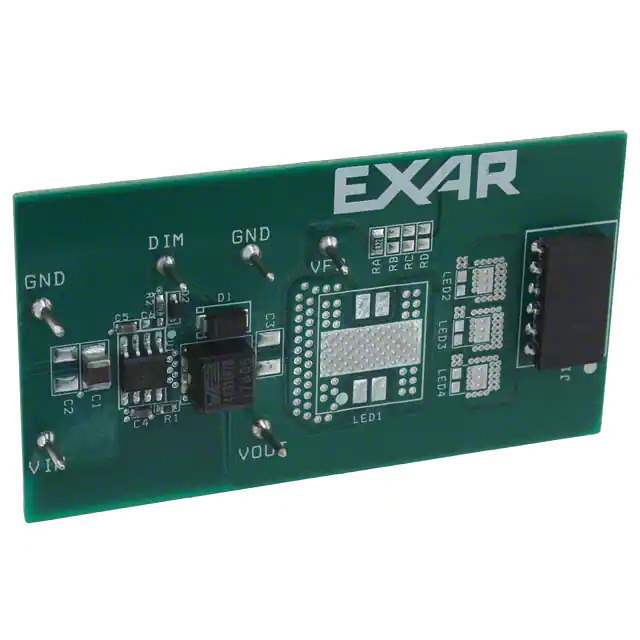

SP7600EB Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - LED Drivers
Mfr MaxLinear Inc
Package Bulk
Product Status Obsolete
Current - Output / Channel 2A
Outputs and Type 1, Non-Isolated
Features PWM Brightness control
Voltage - Input 4.5V ~ 29V
Supplied Contents Board(s)
Utilized IC / Part SP7600
Standard Package 1 pcs
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 896960-SP7600EB
Ultra Librarian 3D Model Ultra Librarian SP7600EB CAD Model

Description

The MaxLinear Inc SP7600EB is an evaluation board for LED drivers. It features PWM brightness control and is capable of driving LEDs with a current output of 2A.

  • PWM Brightness Control: Yes
  • Current Output: 2A
  • Voltage Input Range: 4.5V to 29V
  • Package: Bulk
  • Standard Package: 1 piece
  • IC/Part: SP7600
  • Output Configuration: Non-Isolated
  • Product Status: Obsolete
