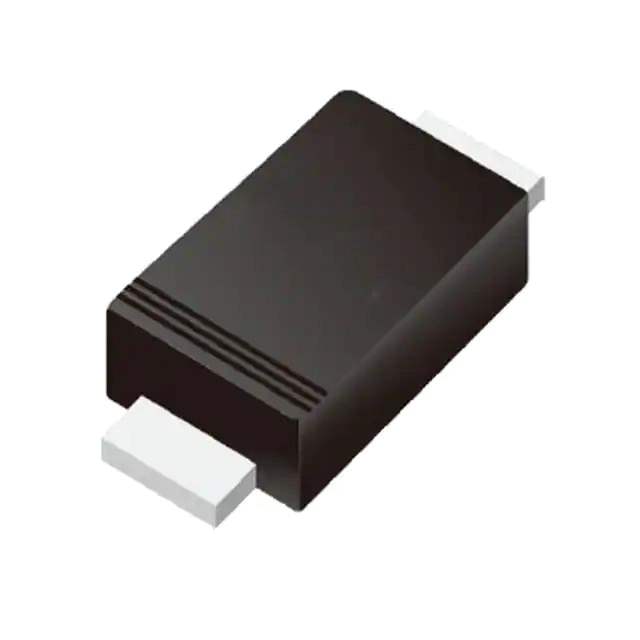

DSK210 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SOD-123FL
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 100 V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123FL
Operating Temperature - Junction -55°C ~ 125°C
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 587179-DSK210
Ultra Librarian 3D Model Ultra Librarian DSK210 CAD Model

Description

The DSK210 is a Schottky diode designed for rectification and switching applications.

  • Maximum Reverse Voltage Rating: 100V
  • Average Rectified Current: 2A
  • Forward Voltage Drop @ 2A: 850mV
  • Reverse Leakage Current @ Maximum Reverse Voltage: 500µA
  • Capacitance @ 4V and 1MHz: 80pF
  • Package: surface mount SOD-123FL
  • Tape and Reel: compatible
  • Operating Temperature Range: -55°C to 125°C
  • Product Status: active
  • Series: MDD series
  • REACH: unaffected
