Same model may have multiple batches, images only for reference.

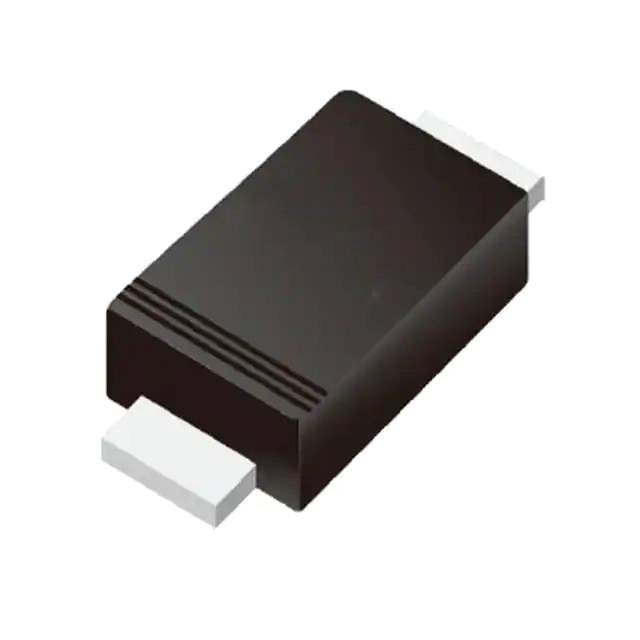

DSK22 Real Image
Same model may have multiple batches, images only for reference.

DSK22

Part No DSK22
Manufacturer MDD
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 2A SOD123FL
Datasheet
DSK22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SOD-123FL
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 20 V
Capacitance @ Vr, F 220pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123FL
Operating Temperature - Junction -55°C ~ 125°C
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 587181-DSK22
Ultra Librarian 3D Model Ultra Librarian DSK22 CAD Model

Description

The 587181-DSK22 is a Schottky diode in the SOD-123FL package.

  • Maximum DC Reverse Voltage: 20V
  • Average Rectified Current: 2A
  • Forward Voltage: 550mV @ 2A
  • Reverse Leakage Current: 500μA @ 20V
  • Capacitance: 220pF @ 4V and 1MHz
  • Operating Temperature: -55°C to 125°C
  • Mounting: Surface mountable
  • Package: SOD-123F (SOD-123FL)
  • Packaging: Tape and reel package of 6,000 pieces
  • Status: Active product in MDD's lineup of Schottky diodes.
