Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOD-323
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 26.7V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 300W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 0.8pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-323
Supplier Device Package SOD-323
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 135965-GBLC24C
Ultra Librarian 3D Model Ultra Librarian GBLC24C CAD Model

Description

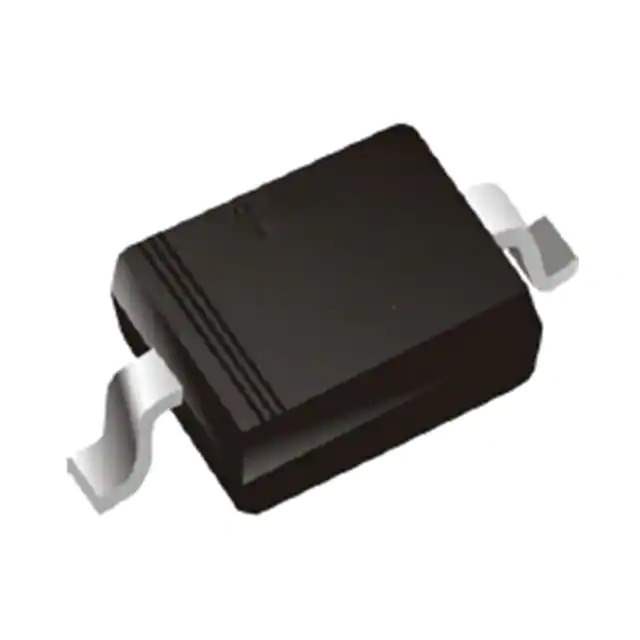

The 135965-GBLC24C is a Zener-type TVS diode designed for general-purpose circuit protection against transient voltage spikes. It is housed in a compact SOD-323 package, allowing for easy surface mount installation using tape and reel packaging.

  • Reverse Standoff Voltage: 24V
  • Breakdown Voltage: 26.7V
  • Peak Pulse Power: 300W
  • Capacitance: 0.8pF @ 1MHz
  • Peak Pulse Current: 1A (8/20μs)
  • Package: SOD-323
