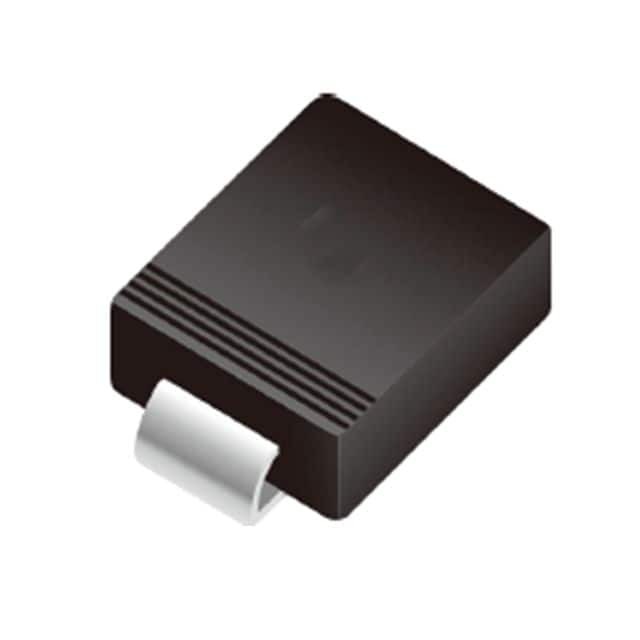

RS3MC
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMC
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 500 ns
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Capacitance @ Vr, F 60pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package SMC
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 892388-RS3MC
Ultra Librarian 3D Model Ultra Librarian RS3MC CAD Model

Description

The 892388-RS3MC is a fast recovery rectifier diode from the SMC series.

  • Maximum DC Reverse Voltage: 1000 V
  • Average Rectified Current: 3A
  • Forward Voltage Drop: 1.3V @ 3A
  • Reverse Recovery Time: 500 ns
  • Current Leakage: 5 µA @ the maximum reverse voltage
  • Capacitance: 60 pF @ 4V and 1MHz
  • Operating Temperature Range: -55°C to 150°C
  • Package: SMC package
  • Mounting: Surface mount
  • Standard Package: 6,000 pcs
  • Manufacturer: MDD
  • Status: Active
