SM05OC

Part No SM05OC
Manufacturer MDD
Catalog TVS - Diodes

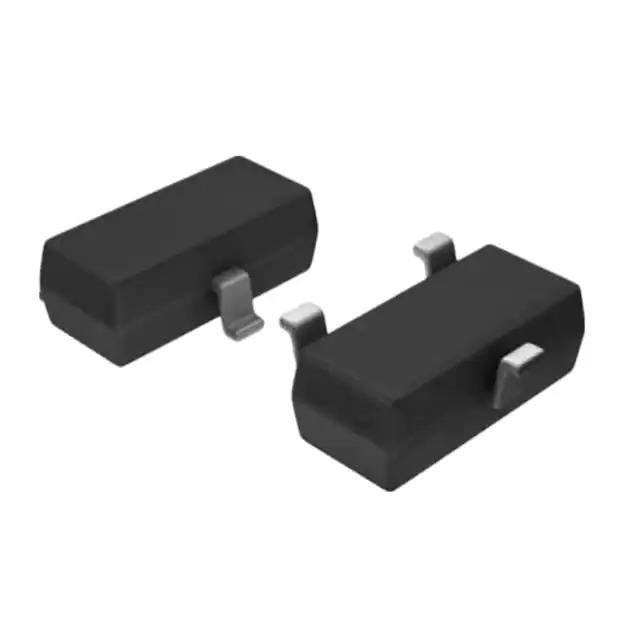

Description TVS DIODE 5VWM 8.5VC SOT23 / Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23
Datasheet
SM05OC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOT-23
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 5.6V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 130W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-23
Supplier Device Package SOT-23
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362300-SM05OC
Ultra Librarian 3D Model Ultra Librarian SM05OC CAD Model

Description

The 1362300-SM05OC is a Zener type TVS diode in a SOT-23 package. It is designed for circuit protection against transient voltage spikes.

  • Type: Zener
  • Voltage - Reverse Standoff (Typ): 5V
  • Voltage - Breakdown (Min): 5.6V
  • Current - Peak Pulse (10/1000µs): 1A
  • Power - Peak Pulse: 130W
  • Polarization: Bidirectional
  • Capacitance @ Frequency: 15pF @ 1MHz
  • Applications: General Purpose
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Package / Case: SOT-23
  • Series: SOT-23
  • Status: Active
