Products specifications

Manufacturer Micrel
Win Source Part Number 1223463-MICRF620ZTR
Manufacturer Homepage www.micrel.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MICRF620ZTR CAD Model

Description

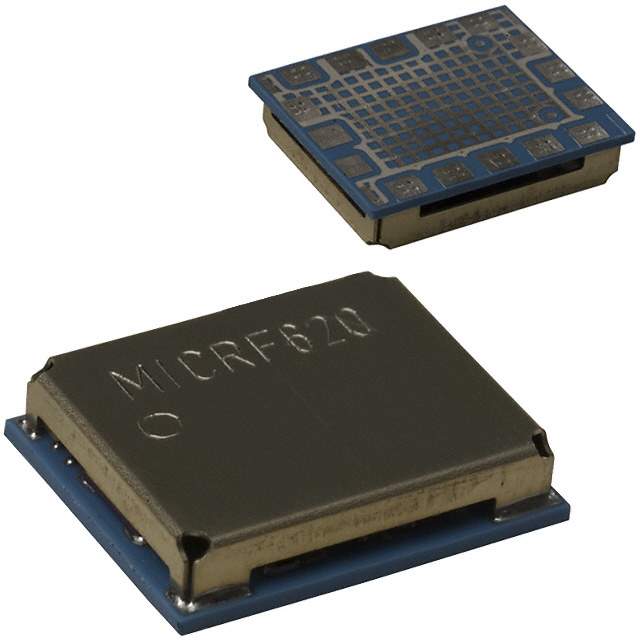

The MICRF620ZTR is a single-chip ASK/OOK (Amplitude Shift Keying/On-Off Keying) transmitter designed for remote control and wireless sensor applications. It operates in the 300 to 450 MHz frequency range and is ideal for low-power, cost-sensitive applications.

Applications:

  • Remote Keyless Entry (RKE) systems
  • Remote Control Transmitters
  • Wireless Sensor Networks
  • Alarm Systems
  • Garage Door Openers
  • Home Automation Systems

Features:

  • Single-Chip ASK/OOK Transmitter
  • Frequency Range: 300 to 450 MHz
  • Low Power Consumption
  • High Output Power
  • Crystal Oscillator Circuit
  • Data Rate up to 10 kbps
  • Supply Voltage: 1.8 V to 3.6 V
  • Small Package Size

Benefits:

  • Cost-Effective Solution: Integrated design minimizes the number of external components required, reducing overall system cost.
  • Long Battery Life: Low power consumption extends the operational life of battery-powered devices.
  • Reliable Communication: High output power ensures robust wireless links even in challenging environments.
  • Ease of Integration: Small package size and minimal external components simplify the design and manufacturing process.
  • Flexible Data Rates: Supports data rates up to 10 kbps, catering to various application requirements.

Additional Details:

The MICRF620ZTR integrates a complete transmitter function, including a crystal oscillator, modulator, and power amplifier. The crystal oscillator provides a stable frequency source, and the modulator encodes the data onto the carrier signal using ASK or OOK modulation. The power amplifier boosts the signal to a sufficient level for reliable transmission. The device requires a minimum number of external components, simplifying the design process. An external antenna matching network is usually needed to optimize the output power and range. The MICRF620ZTR is available in a small package, making it suitable for space-constrained applications.

The device operates over a wide temperature range, making it suitable for use in harsh environments. It is a popular choice for designers looking for a reliable and cost-effective wireless transmitter solution.
