Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Microchip Technology
Package Bulk
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) 12A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 30 A
Speed Standard Recovery >500ns, > 200mA (Io)
Mounting Type Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-203AA (DO-4)
Operating Temperature - Junction -65°C ~ 200°C
Standard Package 1 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 854293-1N1201A
Ultra Librarian 3D Model Ultra Librarian 1N1201A CAD Model

Description

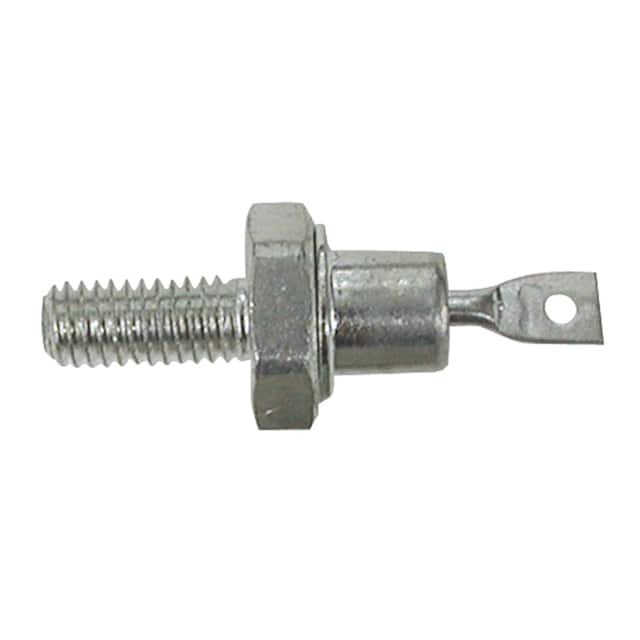

The 1N1201A is a robust and reliable silicon rectifier diode from Microchip Technology, renowned for its high-quality semiconductor products. This component is designed to meet the stringent requirements of electronic systems that demand efficient power conversion and rectification. With its superior characteristics, the 1N1201A is an ideal choice for a wide range of applications, including power supplies, inverters, and other high-voltage circuits.

Key Features

  • High Current Capability: The 1N1201A is capable of handling high current loads, making it suitable for heavy-duty operations.
  • High Surge Current Capability: It offers excellent surge current handling capabilities, ensuring reliability under transient conditions.
  • High Voltage Rating: With a high reverse voltage rating, this diode can be used in circuits that experience high voltage levels.
  • Robust Construction: The device is built to withstand harsh environments and provide consistent performance over its lifespan.

Electrical Specifications

Parameter Value Maximum Repetitive Reverse Voltage (V<sub>RRM) 50V Maximum RMS Voltage (V<sub>RMS) 35V Average Forward Rectified Current (I<sub>o) 12A Operating Junction Temperature (T<sub>j) -65°C to +175°C

Applications

The 1N1201A is versatile and can be implemented in a variety of applications, including:

  • Power management systems
  • DC power supplies and DC converters
  • Motor controllers
  • Battery chargers
  • Automotive applications

Quality and Reliability

Microchip Technology is committed to delivering high-quality components. The 1N1201A diode undergoes rigorous testing to ensure it meets the company's standards for reliability and performance. Customers can trust this product to deliver consistent operation and longevity in their electronic designs.
