Products specifications

Categories Integrated Circuits (ICs)
Manufacturer Microchip Technology
Packaging Tube
Part Status Obsolete(EOL)
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH
Memory Size 256Kb (32K x 8)
Write Cycle Time - Word, Page 10ms
Access Time 200ns
Memory Interface Parallel
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range 0°C ~ 70°C (TC)
Mounting Style Through Hole
Package 28-DIP (0.600", 15.24mm)
Manufacturer Package 28-PDIP
Win Source Part Number 768966-AT29C256-20PC
Popularity Medium
Supply and Demand Status Limited
Family Name AT29C256
Introduction Date May 16, 1996
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AT29C256-20PC CAD Model

Description

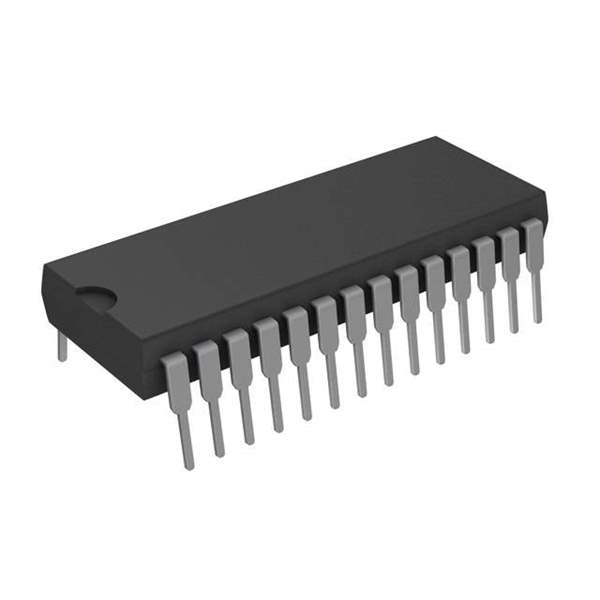

Microchip Technology AT29C256-20PC

The AT29C256-20PC is a high-performance 256-kilobit Flash memory component produced by Microchip Technology, a leader in the field of smart, connected, and secure embedded control solutions. This device provides a flexible and convenient non-volatile memory storage solution for a variety of applications, from embedded systems to general-purpose computing.

Designed with reliability and efficiency in mind, the AT29C256-20PC operates at a standard 5V power supply, which makes it compatible with most existing systems without the need for additional power regulation. Its 20 nanosecond access time ensures rapid data retrieval, making it an excellent choice for applications requiring quick memory access, such as real-time systems or high-speed computing tasks.

The AT29C256-20PC is organized as 32,768 words by 8 bits (32K x 8), providing a total storage capacity of 256 kilobits. It employs a simple yet effective parallel interface for communication, which allows for straightforward integration into a wide range of microcontroller-based systems. The parallel interface also contributes to the device's high-speed performance by enabling the transfer of multiple bits in parallel.

One of the key features of this Flash memory chip is its endurance; it is rated for a minimum of 10,000 write cycles, ensuring a long service life even under frequent write operations. Additionally, data retention is rated at a minimum of 10 years, providing a stable and reliable storage solution over an extended period.

The AT29C256-20PC comes in a 28-pin DIP (Dual In-line Package) casing, making it easy to handle and integrate into both prototyping breadboards and final product designs. Its industry-standard packaging ensures that it can be used as a drop-in replacement for other similar memory devices, facilitating upgrades and repairs without significant redesigns.

In summary, the Microchip Technology AT29C256-20PC Flash memory chip is a robust, high-speed storage solution that combines performance, reliability, and ease of use. It is an ideal choice for designers and engineers looking to incorporate non-volatile memory into their systems with minimal hassle and maximum longevity.
