Products specifications

Categories Integrated Circuits (ICs)
Manufacturer Microchip Technology
Series AVR ATmega
Packaging Tray
Part Status Obsolete(EOL)
Core Processor AVR
Core Size 8-Bit
Speed 1MHz
Connectivity SPI, UART/USART, USI
Peripherals Brown-out Detect/Reset, LCD, POR, PWM, WDT
Number of I/O 53
Program Memory Size 16KB (8K x 16)
Program Memory Type FLASH
EEPROM Size 512 x 8
RAM Size 1K x 8
Supply Voltage 1.8 V ~ 5.5 V
Data Converters A/D 8x10b
Oscillator Type Internal
Operating Temperature Range 0°C ~ 70°C
Package 64-TQFP
Manufacturer Package 64-TQFP (14x14)
Win Source Part Number 769216-ATMEGA169V-1AC
Popularity Medium
Supply and Demand Status Limited
Family Name ATmega169V
Introduction Date May 02, 1997
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian ATMEGA169V-1AC CAD Model

Description

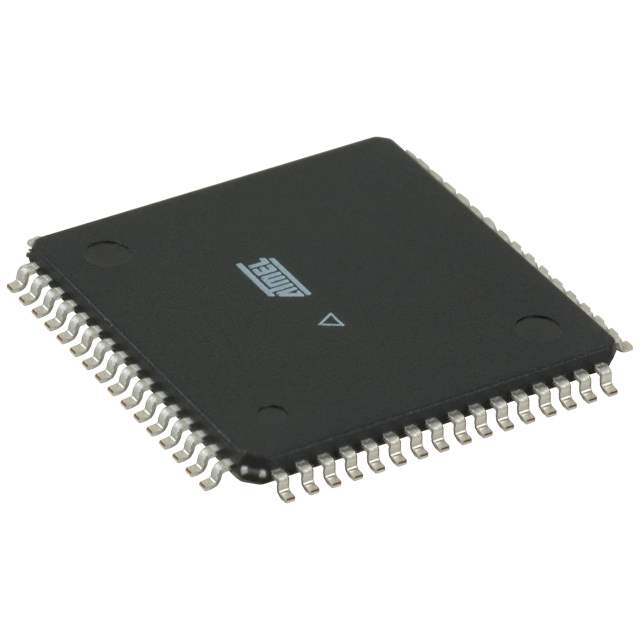

Microchip Technology ATMEGA169V-1AC Overview

The ATMEGA169V-1AC is a high-performance, low-power Atmel AVR 8-bit microcontroller that combines 16KB ISP flash memory with read-while-write capabilities, 512B EEPROM, and 1KB SRAM. This microcontroller from Microchip Technology is designed to offer a perfect balance between power consumption and processing capability, making it an ideal choice for a wide range of applications, especially those that require efficient power management and robust performance in a compact package.

Built on an advanced RISC architecture, the ATMEGA169V-1AC achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed. The device operates between 1.8-5.5 volts, making it suitable for battery-operated applications and portable devices.

The microcontroller features a variety of peripherals, including:

  • An 8-channel, 10-bit ADC with an optional internal reference
  • A programmable watchdog timer with internal oscillator
  • Three flexible timer/counters with compare modes
  • Multiple PWM channels
  • A universal serial interface (USI)
  • A master/slave SPI serial interface
  • Byte-oriented 2-wire serial interface (I²C compatible)
  • A programmable serial USART

The ATMEGA169V-1AC also supports a range of in-system programmable options for easy firmware updates. Its on-chip debug capability, facilitated by JTAG (Joint Test Action Group) interface, simplifies debugging and development. For design flexibility, the microcontroller includes an on-chip analog comparator and offers power-save, power-down, and standby modes, significantly reducing power consumption when not in full operation.

Whether you're developing advanced industrial control systems, consumer electronics, or battery-operated products, the ATMEGA169V-1AC presents a versatile and energy-efficient solution that does not compromise on performance. Its comprehensive feature set and adaptability make it a go-to choice for engineers and designers looking to create sophisticated and reliable applications.
